C H A P T E R    25 Part 5  Using Microsoft Office Throughout Your Organization Microsoft Office Resource Kit

Web Support in Microsoft Office Applications Previous

Contents
Next

Index


In This Chapter
Web Support in Microsoft Access 97
Web Support in Microsoft Excel
Web Support in Microsoft Outlook 97
Web Support in Microsoft PowerPoint
Web Support in Microsoft Word

See Also

This chapter describes features in each Microsoft Office 97 for Windows and Office 98 for the Macintosh application that can help you create and manage content on an intranet or on the World Wide Web. It is a companion to Chapter 24, "Integrating Microsoft Office with Your Intranet," which describes Office­wide strategies and features you can implement to integrate Office into your intranet.

Top

Web Support in Microsoft Access 97

  Microsoft Access 97 for Windows provides many ways to create applications to display, run, and publish content on the Internet or an intranet. For example, you can use Access to publish information from datasheets and reports as Web pages. You can also use Access to create files that query a database on a Web server, and then return a Web page to display the results of the query. In addition, you can save an Access form as a Web page that emulates many of the features of the form so that users can view, enter, and update information in your database.

You can also use Access 97 to create applications that display HTML documents in forms, and create hyperlinks that you click to move between database objects and other Office documents located on a hard disk or a local area network (LAN).

The following table summarizes the features available in Access that you can use to work with content on the Internet or an intranet.

To do thisUse these features in Access
Connect to content on the Internet or an intranet Store hyperlinks in fields with the Hyperlink data type and follow the hyperlinks to display Internet content.

Browse the folders of FTP sites in the Link To File dialog box when you insert or edit hyperlinks (for example, by clicking the Insert Hyperlink command on the Insert menu).

Bind a text box control on a form to a field with the Hyperlink data type to enter, display, or follow a hyperlink.

Bind a text box control on a report to a field with the Hyperlink data type to create a hyperlink when you save a report as an HTML document or to print the hyperlink address.

Reference a hyperlink from a label, image control, or command button on a form or report.

Use Visual Basic for Applications methods and properties to work with hyperlinks. For example, use the Follow method to go to the address referenced in a hyperlink, and use the AddToFavorites method to add a hyperlink to the Favorites folder.
Connect to other Office documents and files on an intranet Go to Access objects in the current database or other databases by using hyperlinks from the current Access database or from another Office application.

Go to documents from other Office applications by using hyperlinks from Access databases.

Use the Back and Forward buttons on the Web toolbar to move between followed hyperlinks to database objects and other Office documents.

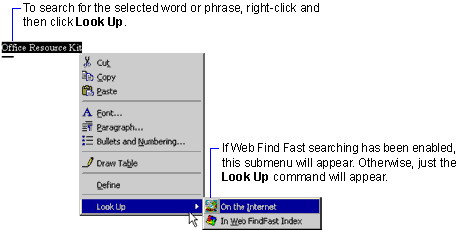

Locate Access databases with Web Find Fast. For information about Web Find Fast, see Chapter 26, "Finding Microsoft Office Documents on the Network."
Publish and share data in a database on the Web Save the data from table, query, and form datasheets or from reports as static HTML documents.

Create Internet Database Connector/HTML extension (IDC/HTX) files to query data from a table, query, or form datasheet in a database on an Internet or intranet server and display it in a Web page.

Save an Access form as an Active Server Page (ASP) that emulates many of the features of the form so that users can view, enter, and update information in a database on an Internet or intranet server.

Create an ASP to query data from a table, query, or form datasheet in a database on an Internet or intranet server and display it in a Web page.

Use the Publish to the Web Wizard to automate the process of publishing and sharing data, store settings from previous publications, and call the Web Publishing Wizard to copy Web files to your Internet or intranet server.

Export HTML documents, IDC/HTX files, or ASPs using the OutputTo method or action.

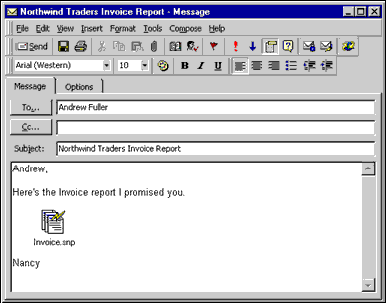

Attach HTML documents, IDC/HTX files, or ASPs to e­mail messages using the SendObject method or action.

Create simple client/server applications that use a Web browser as a front­end for an Access database or other ODBC data source using the ASP components of Internet Information Server 3.0 or later.

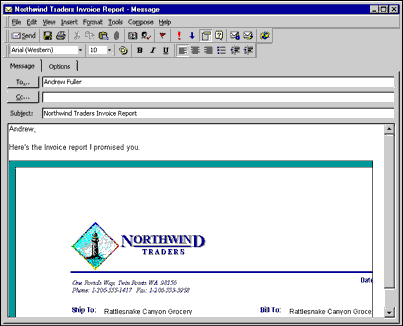

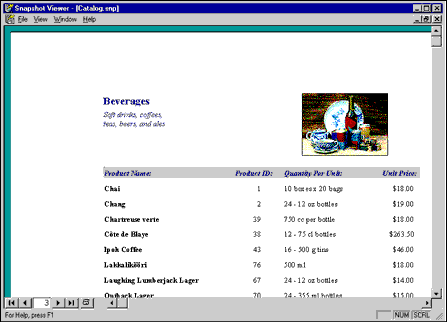

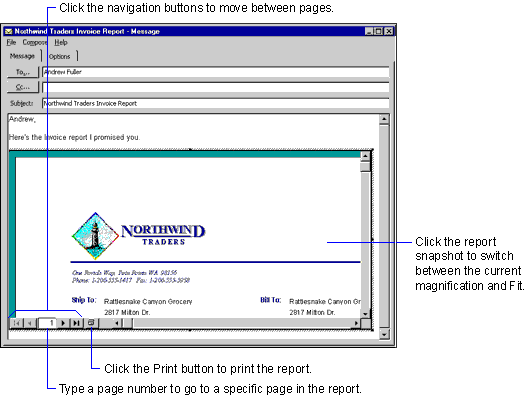

Save Access reports to a special graphical format called a snapshot file, and distribute them using e­mail or by publishing them from Web pages.

Export tables as HTML tables by using the TransferText method or action.
Use the Internet with database replication Synchronize a database replica with a replica or Design Master on an Internet or intranet server.
Import, link, and export data located on the Internet or an intranet Import and link HTML tables and lists by using the Import HTML Wizard and the Link HTML Wizard. When you link HTML tables, the data is read­only.

Import and link any data on an Internet or intranet server that is supported by a built­in Access driver. When you link data on an Internet server, the data is read­only.

Use the Import and Link dialog boxes to browse FTP sites when you import or link data (for example, by pointing to Get External Data on the File menu and then clicking Import or Link table). You can also use the Import and Link dialog boxes to enter an HTTP address when you are importing or linking data.

Import or link HTML tables by using the TransferText method or action. When you link HTML tables, the data is read­only.

Import or link data by using HTTP and FTP addresses, and export data by using FTP addresses in the following Visual Basic properties, methods, and actions:
Connect property
CreateTableDef method
OutputTo method and action
TransferDatabase method and action
TransferText method and action
TransferSpreadsheet method and action
Display Web pages and other documents in Access forms Use the WebBrowser control on your application's forms to browse Web sites, view Web pages and other documents, and download data located on the Internet or an intranet. You can use the WebBrowser control to browse folders on you hard disk and on a network.

Many of these features are described in more detail in the following sections. For more information about Internet features in Microsoft Access, see Chapter 21, "Developing Applications for the Internet and the World Wide Web," in Building Applications with Microsoft Access 97. For more information about this and other Microsoft Press books, see "Microsoft Press Titles" in Appendix E, "Other Support Resources."

Using Hyperlinks in Microsoft Access Applications

With Access 97, you can create two kinds of hyperlinks in tables, forms, and reports:

  • Hyperlinks to display and run standard Internet content, such as HTML documents.

  • Hyperlinks that allow you to move between Microsoft Word documents, Microsoft Excel worksheets, Microsoft PowerPoint slides, and Access database objects that are stored on a hard disk or on a LAN.

You do not need Internet connections or intranet servers to use Office hyperlinks to move between Office documents or files. You can use both kinds of hyperlinks in the same database application.

There are two ways you can use hyperlinks in Access applications:

  • Create a field with the Hyperlink data type to store hyperlink addresses in a table and then bind that field to a text box on a form.

    Like other bound fields, as the user moves from record to record, the value in the text box changes to display the current record's hyperlink value. For example, you can use hyperlinks in this way to create an application in which users can go to Web pages, or to other content on the Internet or an intranet, from a predefined list of addresses. You can also create an application that displays and manages Office documents.

  • Create a label, image control, or command button on a form that references a specified hyperlink address.

    In this case, the hyperlink does not change as you move from record to record. For example, you can use hyperlinks in this way to go to other database objects within the same database, or to open a Web page on an intranet that contains updated information about how to use your application.

Regardless of how a hyperlink is defined in your application, if the hyperlink goes to a database object or opens another Office document, you can use the Web toolbar to move between the hyperlinks that you have previously followed. For example, in the following illustration, the Products form has a command button with a hyperlink that opens a report. Once you have clicked the hyperlink, you can use the Web toolbar to move between other objects you have opened with hyperlinks.


Similarly, if you follow a hyperlink from an Access form to a Word document, you can click the Back button on the Web toolbar in Word to return to the Access form.

Note   By default, after a user clicks a hyperlink on a form, Access continues to display the Web toolbar when the user closes the form. If you want to prevent this, you can use Visual Basic code in the OnClose event of the form to hide the toolbar. To see an example of this code, open the Products form in the Northwind sample application in Design view, and then display the event procedure in the OnClose event of the form.

Storing Hyperlinks in Tables

In Access, a field in a table can store hyperlinks as data. To create a Hyperlink field, add a field in table Design view and set its DataType property to Hyperlink. You can also create a Hyperlink field in table Datasheet view with the Hyperlink Column command (Insert menu).

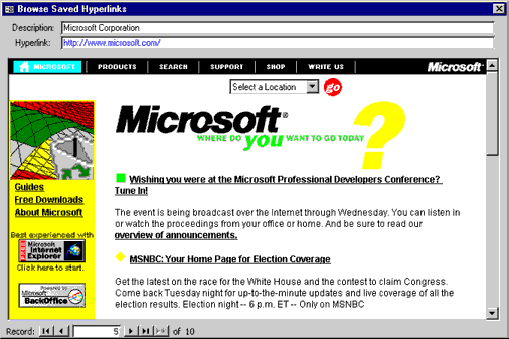

You can follow a hyperlink stored in a table by clicking it in the table, but the field is more typically bound to a text box control on a form.

To add a text box that is bound to a Hyperlink field to a form

  1. Open the form in Design view.

  2. Make sure the RecordSource property of the form is set to the table that contains the Hyperlink field or to a query that includes the table.

  3. Click Field List on the toolbar.

  4. Drag the Hyperlink field from the field list to the form.

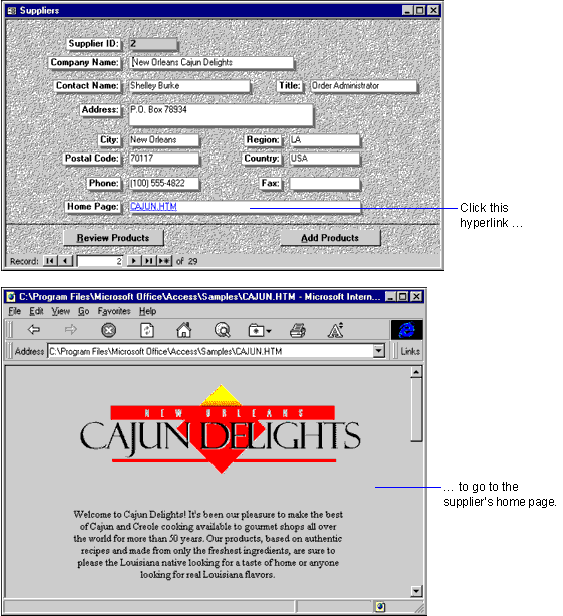

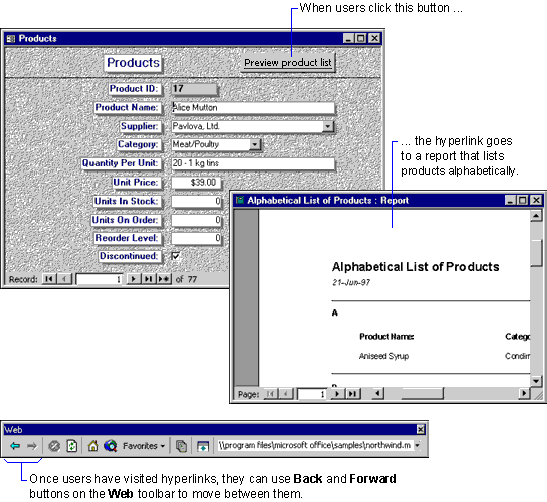

To see an example of how to use a Hyperlink field, open the Suppliers form in the Northwind sample database application. Go to Record 2, New Orleans Cajun Delights. The Home Page text box on the form is bound to the HomePage field in the Suppliers table. Clicking the hyperlink in the text box starts your Web browser and displays the supplier's home page.

You can also use hyperlinks in Access to go to database objects and other Office documents. For example, you could create a document management application that uses a Hyperlink field to store paths to Word documents on a network. Users of such an application could add records to track new documents or click the hyperlink in a previously added record to open the specified document.

Editing the Hyperlink Field

A Hyperlink field stores up to three pieces of information: the displaytext, the address, and the subaddress. Each piece is separated by the number sign (#), in the following format:

displaytext#address#subaddress

The following table describes each piece of the Hyperlink field storage format.

PieceRequired? Description
displaytextNo The text the user sees in the Hyperlink field in a table or in a text box bound to the Hyperlink field. You can set the display text to any text string. For example, you may want the display text to be a descriptive name for the Web site or object specified by the address and subaddress. If you do not specify display text, Access displays the value of address instead.
address Yes (unless the subaddress points to an object in the current database file) Either a valid URL that points to a page or file on the Internet or an intranet, or the path to a file on a hard disk or LAN. If you enter a path on a LAN, you can omit a mapped drive letter and use the UNC format: server\share\path\filename. This prevents the path from becoming invalid if the database is later copied to another hard disk or shared network folder.
SubaddressNo A specific location within a file or document; for example, a database object, such as a form or report. When referring to a database object, the name of the object should be preceded by its type: Table, Query, Form, Report, Macro, or Module. Other possible values for subaddress include a bookmark in a Word document, an anchor in an HTML document, a PowerPoint slide, or a cell in an Excel worksheet.

Each piece of the Hyperlink field storage format can be up to 2,000 characters. The maximum length of the entire Hyperlink field value is 6,000 characters. You can display the stored hyperlink format by moving the insertion point into a Hyperlink field using the keyboard and then pressing F2. You can edit the stored hyperlink in this form as long as you enter number signs in the appropriate locations. You can add or edit the displaytext part of a hyperlink field by right­clicking a hyperlink in a table, pointing to Hyperlink on the shortcut menu, and then typing the display text in the Display Text box.

For more information about the Hyperlink field storage format, see Access online Help.

Entering a URL as a Hyperlink Address

To create a hyperlink that goes to a Web page or other Internet content, you must enter a valid Uniform Resource Locator (URL) as the hyperlink address. You can enter a URL that points to any Internet file type or resource supported by the browser or to an ActiveX control, such as the WebBrowser control, that is used to display or run it. You enter most URLs in the following format:

protocol://serveraddress/path

Protocol specifies the Internet protocol used to establish the connection to the server, and is generally followed by a colon and two slash marks. Serveraddress specifies what is usually called the domain name of the Internet server. Path specifies the location and name of the page or file on the Internet server. For example, the URL to the home page of the Access Developer Forum is:

http://www.microsoft.com/accessdev/

When you type a URL into a Hyperlink field, Access automatically recognizes the following Internet protocols.

Internet protocols recognized by Access

cidmailto pnm
filemid prospero
ftpmms rlogin
gophermsn telnet
httpnews tn3270
httpsnntp wais

If you create a field by importing a column of data and all records in the imported data begin with one of these protocols, Access automatically sets the data type of the imported field to Hyperlink. Similarly, if you create a new table in Datasheet view and every entry you make in a field begins with one of these protocols, Access sets the data type of the new field to Hyperlink when you save the table.

Creating Labels, Image Controls, or Command Buttons That Reference a Hyperlink Address

To create a label, image control, or command button on a form that references a specified hyperlink address, set the HyperlinkAddress and HyperlinkSubAddress properties of the control to point to the content on the Internet or an intranet, or to the Office document or Access database object you to which you want to go.

Note   The HyperlinkAddress and HyperlinkSubAddress property settings correspond to the address and subaddress values entered for a Hyperlink field. For more information about these values, see "Editing the Hyperlink Field" earlier in this chapter.

Additionally, to create the hyperlink display text for a label or command button control, you must set the Caption property. Because no text displays for an image control, there is no corresponding display text setting.

You can also create a label that references a hyperlink address by opening the form in Design view, and then clicking the Hyperlink command (Insert menu). However, this method does not define the display text. To define display text, you must set the Caption property of the label.

For more information about creating a label, image control, or command button that references a hyperlink address, see Access online Help.

Using Visual Basic Methods and Properties To Work with Hyperlinks

Access provides several methods and properties that you can use to work with hyperlinks in Visual Basic code. The following table summarizes these methods and properties.

Method or property name Description
Follow method Has the same effect as clicking a hyperlink. When you use the Follow method, you do not need to know the address specified by a HyperlinkAddress or HyperlinkSubAddress property, or by the Hyperlink field that is bound to a text box control. You only need to know the name of the control that contains the hyperlink.
FollowHyperlink method Goes to a hyperlink specified in code or passed to the method from an unbound text box. For example, you can prompt a user to type a hyperlink address in a dialog box, and then use the FollowHyperlink method to go to that address. You can also use the FollowHyperlink method to specify a hyperlink for controls other than labels, image controls, and command buttons, or text boxes bound to Hyperlink fields.
AddToFavorites method Adds the hyperlink address specified in the referenced control to the Favorites folder.
Hyperlink property Returns a reference to a hyperlink object in code. You can use the Hyperlink property to gain access to the hyperlink­specific properties and methods of any control that contains a hyperlink.
HyperlinkAddress property Specifies or determines the address of a hyperlink for a label, image control, or command button.
HyperlinkSubAddress property Specifies or determines the location within the Office document or object specified by the HyperlinkAddress property.
HyperlinkPart function Parses the information stored in a Hyperlink field.

For more information about these methods and properties, see Access online Help or see Chapter 21, "Developing Applications for the Internet and the World Wide Web," in Building Applications with Microsoft Access 97. For more information about this and other Microsoft Press books, see "Microsoft Press Titles" in Appendix E, "Other Support Resources."

Making Microsoft Access Data Available on the Internet

With Access, you can make your data available on the Internet or an intranet by:

  • Saving data as HTML documents.

  • Synchronizing a database replica with a replica or Design Master on an HTTP or FTP server.

Saving Data as HTML Documents

Access provides four ways to save data from your database as HTML documents:

  • Save data as static HTML documents

    You can create static HTML documents from table, query, and form datasheets and from reports. When you save data as static HTML documents, the resulting pages reflect the state of the data at the time it was saved. If your data changes, you must save the pages again to share the new data.

  • Save table, query, and form datasheets as IDC/HTX files

    You can save your table, query, and form datasheets as IDC/HTX files that generate HTML documents by querying a copy of your database located on a Web server for current data.

  • Save forms and datasheets as ASPs

    You can save your forms as ASPs that emulate most of the functionality of your forms and display data from a database located on a Web server. You can also save table, query, and form datasheets as ASPs that display current data from a copy of your database located on a Web server.

  • Automate the publishing of dynamic and static HTML documents

    You can use the Publish to the Web Wizard to automate the process of saving multiple objects to any combination of all three file types. In the Publish to the Web Wizard, IDC/HTX files and ASP files are referred to as dynamic Web pages because these file types display current data to users.

The following sections discuss each of these options in more detail.

Saving Data as Static HTML Documents

With Access, you can save table, query, and form datasheets and reports as static HTML documents.

To save a table, query, or form datasheet or a report as a static HTML document

  1. In the Database window, click the table, query, form, or report you want to save.

  2. On the File menu, click Save As/Export.

  3. In the Save As dialog box, click To an External File or Database, and then click OK.

  4. In the Save as type list, click HTML Documents.

  5. To open the resulting HTML document in your Web browser automatically, select the Autostart check box.

  6. Specify a file name and location for the HTML file, and then click Export.

  7. In the HTML Output Options dialog box, specify whether you want Access to merge an HTML template with the resulting HTML document, and then click OK.

    For information about HTML templates, see "Using an HTML Template When You Save Data as HTML Documents" later in this chapter.

You can also save data as static HTML documents by using the Publish to the Web Wizard (available through the Save As HTML command on the File menu), the OutputTo method in code, or the OutputTo action in macros.For more information about saving table, query, or form datasheets and reports as HTML documents, see Access online Help.

When saving table, query, and form datasheets, Access saves each datasheet to a single HTML file. Access saves reports as multiple HTML documents, with one HTML file per printed page. To name each page, Access uses the name of the object and appends _Pagenn to the end of each file name after the first page; for example, ProductList.htm, ProductList_Page2.htm, ProductList_Page3.htm, and so on.

Saving Table, Query, and Form Datasheets as Static HTML Documents

When you save a table, query, or form datasheet as an HTML document, the HTML document generated is based on the table or query associated with the datasheet, including the current setting of the OrderBy or Filter property of the table or query, which determines how the table, query, or form is sorted or filtered.

The HTML document contains an HTML table that reflects as closely as possible the appearance of the datasheet by using the appropriate HTML tags to specify color, font, and alignment. The HTML document follows as closely as possible the page orientation and margins of the datasheet. Whenever you want to use settings that are different from the default orientation and margins for a datasheet, you must first open the datasheet, and then use the Page Setup command (File menu) to change settings before you save the datasheet as an HTML document.

If a field has a Format or InputMask property setting, that setting is reflected in the data in the HTML document. For example, if a Format property of the field is set to Currency, the data in the HTML document is formatted with a dollar sign, a comma as the thousand separator, and two decimal places; for example, $1,123.45.

Saving Reports as Static HTML Documents

When you save a report as a series of HTML documents, the HTML documents generated are based on the report's underlying table or query, including the current OrderBy or Filter property setting of the table or query.

The HTML documents closely approximate the proportions and layout of the actual report and follow as closely as possible the page orientation and margins set for the report. To change the page orientation and margins, open the report in Print Preview, and then click the Page Setup command (File menu) to change settings before you save the report as HTML documents. These settings are saved from session to session for reports, so if you change them once, they will be used the next time you save the form or report as HTML documents.

If you specify an HTML template that contains placeholders for navigation controls when you save a report as multiple HTML documents, Access creates hyperlinks that the user can use to go to the first, previous, next, and last pages in the publication. Where Access places the hyperlinks depends on where you locate the placeholders in the HTML template.

For information about HTML templates and placeholders, see "Using an HTML Template When You Save Data as HTML Documents" later in this chapter.

How Microsoft Access Saves Data Types in HTML

When you save data as static HTML documents, Access saves values from most data types as strings and formats them as closely as possible to their appearance in the datasheet or report. There are two exceptions:

  • OLE Object fields are not saved.

  • Hyperlink field values are saved as hyperlinks in the HTML document. The hyperlinks use HTML anchor tags with an HREF attribute, as described in the following table.

    In this scenario This anchor tag format is used
    The hyperlink does not include a subaddress. <A HREF="address">displaytext</A>
    The hyperlink includes a subaddress. <A HREF="address#subaddress">displaytext</A>
    The display text is not specified. <A HREF="address">address</A>

Access determines the displaytext, address, and subaddress values in the anchor tags by parsing the value stored in the Hyperlink field.

For information about the displaytext, address, and subaddress values, see "Editing the Hyperlink Field" earlier in this chapter.

Saving Table, Query, and Form Datasheets as IDC/HTX Files

With Access, you can save a table, query, or form datasheet as IDC/HTX files that generate HTML documents by querying a copy of your database located on a Web server. In contrast to static HTML documents, IDC/HTX files display current data from your database; therefore, the HTML documents that they generate are dynamic.

To save a table, query, or form datasheet as IDC/HTX files

  1. In the Database window, click the table, query, or form you want to save.

  2. On the File menu, click Save As/Export.

  3. In the Save As dialog box, click To an External File or Database, and then click OK.

  4. In the Save as type list, click Microsoft IIS 1­2.

  5. Specify a file name and location for the IDC/HTX files, and then click Export.

  6. In the HTX/IDC Output Options dialog box, specify:

    • The data source name to use for a copy of the current database.

    • A user name and password, if required to open the database.

    • An HTML template, if you want Access to merge one with the HTML extension (HTX) file.

      Note   You can specify any of these items later, except the HTML template, by editing the resulting IDC file in a text editor, such as Notepad.

You can also save a table, query, or form datasheet as IDC/HTX files by using the Publish to the Web Wizard (available through the Save As HTML command on the File menu), the OutputTo method in code, or the OutputTo action in macros.

For more information about saving table, query, or form datasheets as IDC/HTX files, see Access online Help

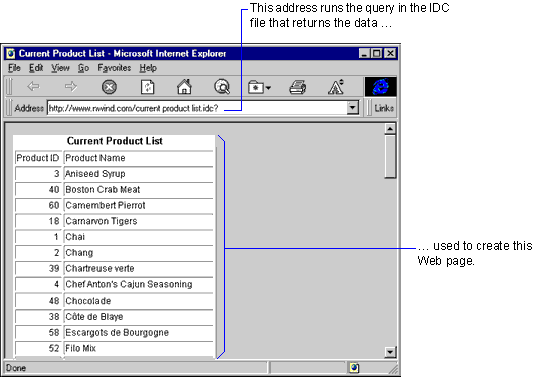

How the Internet Database Connector Works

When you save a table, form, or query datasheet as Internet Connector files, Access creates two files: an Internet Database Connector (IDC) file and HTML extension (HTX) file. These files are used to generate a Web page that displays current data from your database.

An IDC file contains the necessary information to connect to a specified Open Database Connectivity (ODBC) data source and to run an SQL statement that queries the database. The information needed to connect to the database includes the data source name and, if user­level security is established for the database, the user name and password required to open the database. For example, if you save the Current Product List query datasheet from the Northwind sample database application as IDC/HTX files, Access creates the following IDC file:

Datasource:Northwind
Template:Current Product List.htx
SQLStatement:SELECT [Product List].ProductID, [Product List].ProductName
+FROM Products AS [Product List]
+WHERE ((([Product List].Discontinued)=No))
+ORDER BY [Product List].ProductName;
Password:
Username:

An IDC file also contains the name and location of an HTML extension (HTX) file. The HTX file is a template for the HTML document; it contains field merge codes that indicate where the values returned by the SQL statement should be inserted. For example, if you save the Current Product List query datasheet from the Northwind sample database application as IDC/HTX files, Access creates the following HTX file:

<HTML>
<TITLE>Current Product List</TITLE>
<BODY>
<Table Border=1 BGCOLOR="#ffffff"><FONT FACE="ARIAL" COLOR="#000000">
<CAPTION><B>Current Product List</B></CAPTION>

<THEAD>
<TR>
<TD><FONT SIZE=2 FACE="ARIAL" COLOR="#000000">Product ID</FONT></TD>
<TD><FONT SIZE=2 FACE="ARIAL" COLOR="#000000">Product Name</FONT></TD>
</TR>
</THEAD>
<TBODY>
<%BeginDetail%>
<TR VALIGN=TOP>
<TD ALIGN=RIGHT><FONT SIZE=2 FACE="ARIAL" COLOR="#000000"><%ProductID%><BR></FONT></TD>
<TD><FONT SIZE=2 FACE="ARIAL" COLOR="#000000"><%ProductName%><BR></FONT></TD>
</TR>
<%EndDetail%>
</TBODY>
<TFOOT></TFOOT>
</BODY>
</HTML>

Access saves the HTX file to be used with an IDC file with the same name as the IDC file, but with an .htx extension rather than an .idc extension. After the database information has been merged into the HTML document, the HTML document is returned to the Web browser.

If you open Current Product List.idc from a Microsoft Internet Information Server that has an appropriately defined Northwind data source name (DSN), the Web page shown in the following illustration is generated.

Note   You can also reference an HTML template when you create IDC and HTX files. An HTML template contains additional HTML code to enhance the appearance of the resulting pages. If you specify an HTML template, it is merged with the HTX file. For information about the format of an HTML template, see "Using an HTML Template When You Save Data as HTML Documents" later in this chapter.

Requirements for Using IDC/HTX Files

To display and use IDC/HTX files, a copy of your database and the IDC/HTX files must reside on a computer running one of the following operating systems and Internet server environments:

  • Windows NT Server version 3.51 or later running Microsoft Internet Information Server (IIS) version 1.0, 2.0, or 3.0.

  • Windows NT Workstation version 4.0 with Peer Web Services installed.

  • Windows 95 and Personal Web Server installed.

Use Peer Web Services or Personal Web Server only for testing IDC/HTX files or if no more than 10 users use the server simultaneously. Microsoft IIS, Peer Web Services, and Personal Web Server use a component called the Internet Database Connector (Httpodbc.dll) to generate Web pages from IDC/HTX files.

For more information about installing Peer Web Services or Personal Web Server, see "Setting Up a Personal Web Server" in Chapter 24, "Integrating Microsoft Office With Your Intranet."

   World Wide Web   For more information about Microsoft Internet Information Server, connect to the IIS Web site at:

http://www.microsoft.com/iis/

The Internet Database Connector component requires ODBC drivers to gain access to a database. To gain access to an Access database, the Access Desktop driver (Odbcjt32.dll) must be installed on your Web server. This driver is installed when you select the ODBC Drivers And Administration check box during IIS Setup.

However, the Access Desktop driver is not installed with Peer Web Services or Personal Web Server. If Access is installed on the computer you are using to run Personal Web Server, and if you selected the driver when you installed Access, the driver is already available. If you do not have Access installed on the computer you are using to run Personal Web Server, you must install the Access Desktop driver.

To install the Access Desktop driver

  1. Start the Office or Access Setup program.

    If you are running Setup for the first time, click Custom.

    – or –

    If you are rerunning Setup, click Add/Remove.

  2. Select the Data Access option, and then click Change Option.

    Important   The Microsoft Access option must also be selected or the driver will not be installed.

  3. Under the Database Drivers option, select the Microsoft Access Driver check box.

After the Access Desktop driver is installed, you must create either a system DSN or a file DSN that specifies the name and connection information for each database you want to use on the server. You then specify that DSN when you generate the IDC/HTX files.

For information about how to define a system DSN or a file DSN, see Access online Help. For more information about using IDC/HTX files, see Microsoft Internet Information Server online Help.

   World Wide Web   You can learn more about applications that use IDC/HTX files by reading about the Job Forum application. For information about the Job Forum application, connect to the Job Forum white paper at:

http://www.microsoft.com/accessdev/articles/jobforpa.htm

Saving Forms and Datasheets as Active Server Pages

With Access, you can save a form as an ASP that emulates much of the functionality of your form. When saving a form as an ASP, Access saves most but not all controls on the form as ActiveX controls that perform the same or similar functions.

Access does not save or run Visual Basic code behind the form or controls. To copy the layout of your form as closely as possible, Access uses the Microsoft HTML Layout control to position the controls on an ASP. The resulting page uses a feature of the ASP component of Microsoft Internet Information Server 3.0 called server­side scripting to connect to a copy of your database on an Internet server.

   World Wide Web   For information about the HTML Layout control, connect to:

http://www.microsoft.com/workshop/author/layout/layout.htm

Users who open a form saved as an ASP can browse records, update or delete existing records, and add new records.

You can also save table, query, and form datasheets as ASPs. When you open a datasheet saved as an ASP, Access displays current data from a copy of your database located on an Internet server, much like IDC/HTX files do. However, unlike IDC/HTX files, ASPs require only one file per datasheet. The ASP file uses scripting to establish a connection to the database on the server and contains information that it uses to format the datasheet. Unlike a form saved as an ASP, users cannot update existing records in or add new records to a datasheet saved as an ASP.

To save a form or datasheet as an ASP

  1. In the Database window, click the form or datasheet you want to save.

  2. On the File menu, click Save As/Export.

  3. In the Save As dialog box, click To an External File or Database, and then click OK.

  4. In the Save as type list, click Microsoft Active Server Page.

  5. Specify a file name and location for the ASP file, and then click Export.

  6. In the Microsoft Active Server Page Output Options dialog box, specify:

    • The data source name to use for a copy of the current database.

    • A user name and password, if required to open the database.

    • An HTML template, if you want Access to merge one with the ASP.

    • The URL for the server where the ASP will reside.

    • The Session timeout setting, which determines how long a connection to the server is maintained after the user stops working with the ASP.

You can also save forms and datasheets as ASPs by using the Publish to the Web Wizard (available through the Save As HTML command on the File menu), the OutputTo method in code, or the OutputTo action in macros.

For more information about saving forms and datasheets as ASPs, see Access online Help.

Form Views Supported for APSs

If the form you save as an ASP has its DefaultView property set to Single Form or Continuous Forms, the ASP is displayed as a single form, unless it is opened in Datasheet view with the Save As/Export command (File menu). If the form has its DefaultView property set to Datasheet, the ASP is displayed as a datasheet. Subforms are always displayed as datasheets, regardless of their DefaultView property setting. All field data types are saved unformatted — that is, the Format and InputMask property settings are not saved.

Control Types Supported for ASPs

When Access saves a form as an ASP, it replaces Access controls with ActiveX controls, as described in the following table.

This Access control Is replaced with this ActiveX control
Text boxText box.
Text box control bound to a Hyperlink field Text box that displays the hyperlink text, but the hyperlink cannot be followed.
List boxList box (single column only).
Combo boxCombo box.
LabelLabel. If the label has HyperlinkAddress or HyperlinkSubAddress properties set, a hyperlink is created for the label.
Command buttonCommand button, but any code associated with the button is lost. If the command button has HyperlinkAddress or HyperlinkSubAddress properties set, a hyperlink is created for the button.
Option groupOption group, but without a group frame.
Option buttonOption button.
Check boxCheck box.
Toggle buttonToggle button.
ActiveX controlActiveX control, but any code associated with the control is lost.

Access does not support the following when saving a form as an ASP:

  • Tab controls

  • Rectangles

  • Lines

  • Page breaks

  • Unbound object frames

  • Bound object frames

  • Image controls

  • Background of a form set with the Picture property

Requirements for Using ASPs

To display and use an ASP, a copy of your database and ASP components must reside on a computer running one of the following operating systems and Internet server platforms:

  • Microsoft Windows NT Server 3.51 or later running IIS 3.0

  • Microsoft Windows NT Workstation 4.0 and Peer Web Services with the ASP components installed

  • Microsoft Windows 95 and Personal Web Server with the ASP components installed

The Microsoft HTML Layout control must be installed on the computer opening the ASP. If the computer opening an ASP produced by Access 97 does not have the HTML Layout control installed, a message is displayed prompting the user to download the control. To display the ASP, the user must click Yes to download the control.

   World Wide Web   The Microsoft HTML Layout control is not included on the Office CD, but you can download it directly from the Web. To download the Microsoft HTML Layout control, connect to:

http://www.microsoft.com/ie/download/ie3add.htm

Use Personal Web Server or Peer Web Services only for testing ASPs or if no more than 10 users will be using the server simultaneously. ASPs also require the Access Desktop driver and a valid DSN to gain access to a database.

   World Wide Web   For more information about installing the ASP components for Peer Web Services and Personal Web Server, connect to the Windows NT Server home page at:

http://www.microsoft.com/ntserver/

Note   Access forms saved as ASP files (using the Save As command on the File menu or using the Publish to the Web wizard) cannot be used on the Macintosh because they require the HTML Layout control. The HTML Layout control does not exist for Macintosh computers. Access tables and queries saved as ASP files can be used on the Macintosh, however, because they do not require the HTML Layout control. You can create your own ASP database application that allows you to browse and update data in a shared Access database from a Web browser on the Macintosh as long as you do not use the HTML Layout control.

Using the Publish to the Web Wizard

With the Publish to the Web Wizard, you can publish a set of Access database objects to any combination of static HTML documents, IDC/HTX files, or ASPs. Using the wizard, you can:

  • Pick any combination of tables, queries, forms, or reports to save.

  • Specify an HTML template to use for the selected objects.

  • Select any combination of static HTML documents, IDC/HTX files, or ASPs.

  • Create a home page to tie together the Web pages you create.

  • Specify the folder where you save your files.

  • Use the Web Publishing Wizard to move the files created by the Publish to the Web Wizard to a Web server.

  • Save the answers you provide the wizard as a Web publication profile and then select that profile the next time you use the wizard. This saves you from having to answer all the questions again.

To run the Publish to the Web Wizard, click Save As HTML (File menu). For more information about using the Publish to the Web Wizard, see Access online Help.

Note   The Publish to the Web Wizard and Web Publishing Wizard cannot copy the database itself or create a DSN on your server when publishing IDC/HTX or ASP. You must perform these operations yourself.

Using an HTML Template When You Save Data as HTML Documents

When you save data as HTML documents, you can use an HTML template to give a consistent look to the HTML documents you create. For example, you can include your company logo, name, and address in the page header; use the background that is used throughout your company; or include standard text in the header or footer of the HTML document.

Note   You can use an HTML template when you save data as static HTML documents, when you save datasheets as IDC/HTX files, when you save a form or datasheet as an ASP, and when you use the Publish to the Web Wizard.

The HTML template can be any HTML document — that is, a text file that includes HTML tags and user­specified text and references. In addition, the HTML template can include placeholders that tell Access where to insert certain pieces of data in the HTML documents. When data is saved as HTML documents, the placeholders are replaced with data. The following table describes each of the placeholders that you can use in an HTML template.

Placeholder Description Location
<!­­AccessTemplate_Title­­> The name of the object being saved Between <TITLE> and </TITLE>
<!­­AccessTemplate_Body­­> The data or object being saved Between <BODY> and </BODY>
<!­­AccessTemplate_FirstPage­­> An anchor tag to the first page Between <BODY> and </BODY> or after </BODY>
<!­­AccessTemplate_PreviousPage­­> An anchor tag to the previous page Between <BODY> and </BODY> or after </BODY>
<!­­AccessTemplate_NextPage­­> An anchor tag to the next page Between <BODY> and </BODY> or after </BODY>
<!­­AccessTemplate_LastPage­­> An anchor tag to the last page Between <BODY> and </BODY> or after </BODY>
<!­­AccessTemplate_PageNumber­­> The current page number Between <BODY> and </BODY> or after </BODY>

When you install Access, sample HTML template files and graphics files are installed in the Program Files\Microsoft Office\Templates\Access folder.

Creating Active Server Pages Database Applications

You can create simple client/server applications that use a Web browser, such as Microsoft Internet Explorer, as a front-end for an Access database or other ODBC data source. It is beyond the scope of this book to discuss these applications in detail, but this section points to resources that document how to create them.

You can use the Active Server Pages (ASP) components of Microsoft Internet Information Server 3.0 or later on Windows NT Server version 4.0 to gain access to an Access database.

You can also install and use the Active Server Pages components from a workstation used as a Web server with Microsoft Peer Web Services 3.0 on Windows NT Workstation version 4.0 or Microsoft Personal Web Server version 1.0a on Windows 95. To use Active Server Pages with Peer Web Services or Personal Web Server, you must install the Active Server Pages components from the Internet Information Server Web site after you install your Web server software.

The following table lists sources of information for each of these applications.

For information about See this Web site
Microsoft Internet Information Server 3.0 and installation of Active Server Pages components Internet Information Server site at http://www.microsoft.com/iis/
Microsoft Peer Web Server 3.0 Peer Web Services site at http://www.microsoft.com/ntworkstation/info/peerweb.htm
Microsoft Personal Web Server 1.0a Personal Web Server site at http://www.microsoft.com/ie/pws/

After you have installed Active Server Pages on any of the three Web servers, you can view the Active Server Pages online documentation. On the Windows Start menu, point to Programs, point to your Web server submenu, and then click Active Server Pages Roadmap. From the Roadmap, you can also view the Adventure Works sample Web site, which demonstrates many of the features of Active Server Pages scripting and is an excellent source of sample code.

You can also view the Roadmap by typing the following address: http://yourserver/iasdocs/aspdocs/roadmap.asp, where yourserver is the domain name of your server. The Roadmap documentation requires either Microsoft Internet Explorer version 3.0 or later, or a browser that supports frames. Microsoft Internet Explorer provides the best results.

The Database Access component of Active Server Pages uses ActiveX Data Objects (ADO) to provide easy access to information stored in a database that complies with the ODBC standard. To gain access to an Access database, use the Microsoft Access ODBC Driver running on your Web server. For information about how to create an Active Server Pages application that opens a database, open the Active Server Pages Roadmap documentation described earlier. In the Contents frame, open Tutorial, Module 2, Lesson 3, "Using the Database Access Component."

This Active Server Pages Roadmap documentation shows you how to create an ASP database application using a text editor. You can also create an ASP database application using Microsoft Visual InterDev. For more information, see the Microsoft Visual InterDev site at:

http://www.microsoft.com/vinterdev/

Note    If you want to use an ASP database application from a Web browser running on the Macintosh, do not use the HTML Layout control in your application. The HTML Layout control does not run on Macintosh computers.

Saving Access Reports as Snapshot Files

As an alternative to printing and distributing Access reports, you can save and distribute them as snapshot files. A snapshot file is a graphics file with a .snp extension; the file contains a copy of each page of a report. After you create a snapshot file, you can e-mail or post it to a Web site for convenient access.

Unlike saving Access reports to other formats, such as HTML or RTF, saving as a snapshot file preserves the full fidelity of the original report, including its two­dimensional layout, embedded graphics, fonts, colors, and charts. Users can view and print snapshot files using the Snapshot Viewer or Snapshot Viewer control, which does not require a full or run-time installation of Access. Report snapshots are a way of electronically distributing Access reports in print preview mode — users can view, scroll, and print the reports using the same features available in print preview in Access.

The Snapshot Viewer allows you to view, print, and mail a report snapshot. Snapshot Viewer version 8.0 consists of a stand-alone executable program (Snapview.exe), a Snapshot Viewer control (Snapview.ocx), a help file, and other related files. You can use the Snapshot Viewer control to view a report snapshot from Microsoft Internet Explorer version 3.0 or later, or from any application that supports ActiveX controls, such as Microsoft Visual Basic for Applications (VBA).

Requirements

To create report snapshots, you need Microsoft Access 97 Service Release 1 (SR-1) or Microsoft Office 97 Professional Edition SR-1. To make sure that you have this version, click About Microsoft Access on the Access Help menu. If you have SR-1, you already have Snapshot Viewer and the ability to create report snapshots. If not, you can download the SR-1 patch from the Microsoft Office 97 SR-1 Web site at http://www.microsoft.com/office/office97/servicerelease/.

Although you must have Microsoft Access 97 SR-1 to create report snapshots, users do not need Access to view, print, mail, or browse them on the Web. However, users must have the Snapshot Viewer or Snapshot Viewer control installed.

If you have the Microsoft Access 97 SR­1 or Office 97 Professional Edition SR-1 on CD-ROM, the self-extracting file to install the Snapshot Viewer and Snapshot Viewer control, Snpvw80.exe, is available in the ValuPack\Access subfolder. To install the Snapshot Viewer and Snapshot Viewer control, double-click Snpvw80.exe. You can also download Snpvw80.exe from the Microsoft Office Developer Web site at http://www.microsoft.com/accessdev/prodinfo/snapshot.htm. In either case, you can freely distribute Snpvw80.exe to anyone who has Windows 95, Windows NT Workstation, or Windows NT Server.

The Snapshot Viewer and Snapshot Viewer control work only with the 32-bit versions of the Windows operating system. The internal format of a snapshot file is a Windows metafile, which can be read only by a computer running 32-bit versions of Windows. For example, users cannot display a report snapshot file from a World Wide Web page on a Macintosh computer or a computer running Unix. If you are using Microsoft Windows NT Workstation version 3.51, you must have Service Pack 5 or later installed to use the Snapshot Viewer control (Snapview.ocx).

To electronically mail a report snapshot, you must use a mail client program that supports MAPI, such as Microsoft Outlook. To display a report snapshot on the World Wide Web, you must use a Web browser that supports ActiveX controls, such as Microsoft Internet Explorer 3.0 or later.

Creating Report Snapshots

You create a report snapshot using the Save As command on the File menu in Access.

To create a report snapshot

  1. In the Database window, click the name of the report you want to export, and then click Save As/Export on the File menu.

  2. In the Save As dialog box, click To an External File or Database, and then click OK.

  3. In the Save as type box, select Snapshot Format (*.snp).

  4. Specify the location and name of the file to export.

  5. To display the results in Snapshot Viewer automatically, select Autostart, and then click Export.

A report snapshot is based on the table or query behind the report, including any sorting or filtering defined by the OrderBy or Filter property settings. If the report is based on a parameter query, Access first prompts you for the parameter values, and then outputs the results.

Opening Report Snapshots

After you create a report snapshot, users can open it using the Snapshot Viewer.

To open a report snapshot

  1. On the Windows Start menu, point to Programs, point to Snapshot Viewer, and then click Snapshot Viewer.

  2. On the File menu, click Open, and then specify the report snapshot file you want.

    You can also double­click the report snapshot file in Windows Explorer.

The following illustration shows a page from the Northwind Traders sample application Catalog report in Snapshot Viewer.

Sending a Report Snapshot in E­mail

In Snapshot Viewer, you can e-mail a report snapshot as an icon or as an embedded file to a mail recipient or distribution list. You can send a report snapshot as an icon from Snapshot Viewer or directly from Access. To send a report snapshot as an embedded file, you must use an e-mail program that supports ActiveX controls, such as Outlook.

To send a report snapshot as an icon from Snapshot Viewer

  1. Open the report snapshot in Snapshot Viewer.

  2. On the File menu, click Send.

    Snapshot Viewer starts your e­mail program and creates an e­mail message with an icon for your report snapshot file.

To send a report snapshot as an icon from Access

  1. Start Access and open the database that contains the report you want to send.

  2. Select the report in the Database window, and then click Send on the File menu.

    Access outputs the report as a snapshot file, starts your e­mail program, and creates an e­mail message with an icon for your report snapshot file.

Note   You can also create a macro that uses the SendObject action to automate the process of sending a report snapshot. For more information about using the SendObject action, see online Help in Access.

When using either method to send a report snapshot as an icon, it is a good idea to include a link to the Snapshot Viewer download page
( http://www.microsoft.com/accessdev/prodinfo/snapshot.htm) in case a recipient does not have Snapshot Viewer installed.

For better performance and user convenience, you might want to set up a local site on your corporate LAN or intranet for downloading the Snapshot Viewer. You can do this by downloading the Snapshot Viewer self-extracting file (Snpvw80.exe) from the Microsoft Office Developer site, copying it to a public server, and providing a link to that location in your message.

The following illustration shows the Invoice report from the Northwind Traders sample application’s embedded as an icon in an Outlook message.

You can also embed a report snapshot as a file that displays the report snapshot inside a mail message using an electronic mail program that supports ActiveX controls, such as Outlook.

To embed a report snapshot as a file in Outlook

  1. Create a snapshot file for the report you want to embed.

  2. Start Outlook, and then create and address a new message.

  3. On the Insert menu, click Object.

  4. In the Insert Object dialog box, select Create from File, and then enter the full path to the report snapshot file name in the File box, or click Browse to search for the file.

The following illustration shows the Invoice report from the Northwind Traders sample application embedded as a file in an Outlook message.

When your mail recipients read the mail message, they can double­click the image to activate Snapshot Viewer control in place and read or print the report.

The following illustration shows the Invoice report in an Outlook message after activating the Snapshot Viewer control.

Why is my e­mail message so large in Windows 95?

Embedding a report snapshot as a file produces a larger e­mail message under Windows 95 than it does under Windows NT Workstation or Windows NT Server. This may prevent you from sending the e­mail message (because of message size limitations set on your mail server). This size difference is related to the way the two operating systems support Windows metafiles.

To reduce the size of the e­mail message, you can do one of the following before sending the report snapshot:

  • Embed the report snapshot as an icon instead of a file.

  • Reduce the number of colors on your display before creating the snapshot.

  • Reduce the size of the embedded report snapshot file using its control handles.

  • Double­click the embedded report snapshot file to activate it in place, right­click the control, and then click Fit on the Zoom menu.

Publishing Report Snapshots on the World Wide Web

You can also make report snapshots available from a Web page on your intranet or the Internet. Once you have created your report snapshots, there are two ways you can publish them on the World Wide Web:

  • Create a hyperlink to each report snapshot using an HTML anchor tag on a Web page.

  • Embed a snapshot report on a Web page using the Snapshot Viewer control and the HTML OBJECT tag.

To create a Web page with a hyperlink to a report snapshot

  1. Create the report snapshot file and save it in a folder on a public server or Web server.

    Note   If you are updating the same reports on a regular basis, you may want to automate the process of creating snapshot files using the OutputTo action or method. For more information, see Access online Help.

  2. Create a Web page using Word, Notepad, or another HTML editor.

  3. For each report snapshot, create a hyperlink using an anchor tag.

    For example, the following anchor tag creates a hyperlink to a snapshot file named Catalog.snp on an HTTP server:

    ‹A HREF="http://MyWebSite/Webreports/catalog.snp"›Catalog report‹/A›

    This example creates a hyperlink to the snapshot file on a shared public folder:


    ‹A HREF="file://\\MyShare\MyFolder\catalog.snp"›Catalog report‹/A›
When users click the hyperlink, Microsoft Internet Explorer performs an in-place activation of the report snapshot using the Snapshot Viewer in the Microsoft Internet Explorer window. Other browsers open the report snapshot in a separate Snapshot Viewer window. In either case, Snapshot Viewer must be installed on the same machine as the browser. Therefore, it is a good idea to provide an additional hyperlink to a software download page for Snapshot Viewer, in case your users do not have Snapshot Viewer installed.

Note   Remind users to use the Snapshot Viewer Print button to print each page of the report snapshot, rather than the Microsoft Internet Explorer Print button or command, which only prints the current Web page.

You can also embed a snapshot report directly in a Web page using the Snapshot Viewer control. Users can view such a Web page only if they are using a browser that supports ActiveX controls, such as Microsoft Internet Explorer version 3.0 or later.

To embed a snapshot report on a Web page using the Snapshot Viewer control

  1. Create a report snapshot file and save it in a folder on a public server or Web server.

    Note   If you are updating the same reports on a regular basis, you may want to automate the process of creating snapshot files using the OutputTo action or method. For more information, see Access online Help.

  2. Create a Web page in Word, Notepad, or another HTML editor.

  3. If you use FrontPage or ActiveX Control Pad, insert the control named Snapshot Viewer Control, version 8 and specify the properties for the control.

    ­  or  ­

    If you use Word, use HTML Source view and enter HTML code to specify the control and its properties directly. (This is also required when you use Notepad or an HTML editor that does not provide a user interface for inserting an ActiveX control into a Web page.)

Regardless of how you create the Web page, the result should be HTML similar to the following example:

‹OBJECT ID="SnapshotViewer" WIDTH=640 HEIGHT=480
CLASSID="CLSID:F0E42D60-368C-11D0-AD81-00A0C90DC8D9"›
	‹PARAM NAME="_ExtentX" VALUE="16722"›
	‹PARAM NAME="_ExtentY" VALUE="11774"›
	‹PARAM NAME="_Version" VALUE="65536"›
	‹PARAM NAME="SnapshotPath" VALUE="http://MyWebSite/Webreports/catalog.snp"›
	‹PARAM NAME="Zoom" VALUE="0"›
	‹PARAM NAME="AllowContextMenu" VALUE="-1"›
	‹PARAM NAME="ShowNavigationButtons" VALUE="-1"›
‹/OBJECT›
Note   The VALUE string specified for the SnapshotPath parameter does not have to be a URL to an HTTP server. You can also specify a UNC path to a shared folder. For example, you could specify the SnapshotPath parameter like this:


‹PARAM NAME="SnapshotPath" VALUE="\\MyShare\Webreports\catalog.snp"›

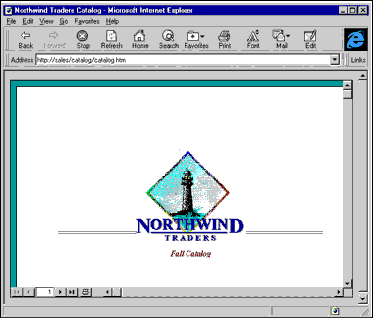

The following illustration shows a page in the Catalog report from the Northwind Traders sample application embedded as a report snapshot in a Web page.

When a user without Snapshot Viewer installed on the computer opens a Web page with an embedded Snapshot Viewer control, Microsoft Internet Explorer automatically downloads the Snapshot Viewer control (but not the entire Snapshot Viewer program) from the Microsoft ActiveX home page. Alternatively, you can copy Snapview.ocx to a location on your corporate intranet and then use the CODEBASE parameter of the HTML OBJECT tag to specify this as the download location.

For example:

‹OBJECT ID="SnapshotViewer" WIDTH=640 HEIGHT=480
CLASSID="CLSID:F0E42D60-368C-11D0-AD81-00A0C90DC8D9"
CODEBASE="http://MyWebSite/LocalControls/Snapview.ocx"›

For more information about the Snapshot Viewer and the Snapshot Viewer control, see Snapshot Viewer online Help. If you have the snapshot viewer installed, you can read the help file, Snapview.hlp, directly from the C:\Program Files\Snapshot Viewer folder. You can also get more information about the Snapshot Viewer, including information about how to automate publishing and distributing snapshot reports, from the following article:

http://www.microsoft.com/accessdev/articles/snapshot.htm

Synchronizing Database Replicas over the Internet

With Access 97, you can synchronize replicas over the Internet. Before you can synchronize over the Internet, you must configure your Internet server for replication. To configure your Internet server, you need Replication Manager, which includes a wizard that guides you through the configuration process.

For more information about Replication Manager, see "Replication Manager" in Chapter 20, "Using Replication in Your Application," in Building Applications with Microsoft Access 97. For more information about this and other Microsoft Press books, see "Microsoft Press Titles" in Appendix E, "Other Support Resources."

Importing, Linking, and Exporting Data to the Internet

With Access, you can import or link data from HTML tables or other data sources on an Internet server. You can also export data in your database to an Internet server.

Importing and Linking Data from HTML Tables

You can import or link data formatted as an HTML table to an Access database. Before Access imports or links the data, it copies the data into the local cache. Whenever you open a linked table, Access makes a local copy from the original on the Internet or an intranet before opening it. For this reason, the data in the table is read­only. Similarly, if you export the linked HTML table to an HTML file, Access exports from the local copy of the file, not the original file on the Internet.

To import or link data from HTML tables

  1. On the File menu, point to Get External Data, and then click either Import or Link tables.

  2. In the Files of type list, click HTML Documents.

  3. To specify the file from which to import or link, use the Look in box to browse through the file system on your hard disk or LAN.

    – or –

    In the File name box, type a valid HTTP or FTP URL.

    – or –

    In the Look in box, click Internet Locations (FTP) and select a previously defined FTP site.

    – or –

    In the Look in box, click Add/Modify FTP Locations, and then specify a new FTP site and browse its files.

  4. Click Import or Link.

For information about linking HTML files using Visual Basic, see "Working with HTML Files" in Chapter 18, "Accessing External Data," in Building Applications with Microsoft Access 97. For more information about this and other Microsoft Press books, see "Microsoft Press Titles" in Appendix E, "Other Support Resources."

When you import or link data from an HTML table, Access parses the information contained within the HTML tags. The primary HTML tags that define tables are described in the following table.

HTML tag pair Description
<TABLE>/office/ork.</TABLE> Specifies the beginning and end of the table
<TH/office/ork.>/office/ork.</TH> Specifies table header cells
<TR/office/ork.>/office/ork.</TR> Specifies a row in a table
<TD/office/ork.>/office/ork.</TD> Specifies table data cells
<CAPTION/office/ork.>/office/ork.</CAPTION> Specifies the table caption, usually at the beginning or end of the table

Access applies the following rules when it interprets the progression of tags and tag pairs within the HTML table it imports or links:

  • The <TD> tag pair may be closed with either a </TD> tag or a </TH> tag.

  • The <TH> tag pair may be closed with either a </TH> tag or a </TD> tag.

  • The <TR> tag is not required to start a new row. If a <TD> tag follows a </TR> tag, Microsoft Access assumes this is the beginning of a new row.

  • If a </TABLE> tag is not preceded by a </TR> tag, then Access assumes this is the end of the row.

In many cases, a table cell can display something other than text. If a table cell contains an embedded graphic file, there is an <IMG SRC/office/ork.> tag associated with it. This tag may or may not have additional text that would be displayed. If additional text is present, Access imports it, but Access does not import the embedded graphic or the tag that defines it. However, this is not true of embedded anchor <A HREF> tags; Access imports anchor tags as Hyperlink fields.

HTML tables can contain lists that are embedded within a table cell. Lists in an HTML table cell are formatted with the <LI> and </LI> tags. Access inserts a carriage return and line feed (<CR><LF>) after each list item and imports each item in the list as a separate field for that record.

HTML tables can also contain tables that are embedded within a table cell. You can import these as separate tables. To achieve the most predictable results, however, import simple HTML tables with a fixed number of fields per record, without embedded lists or tables.

Exporting, Importing, and Linking Data from Other Data Sources on Internet Servers

You can export any Access­compatible external data file to an FTP server. You cannot export files to HTTP servers through the Internet, however, because you cannot write to them using the HTTP protocol.

To export data from external data sources on Internet servers

  1. On the File menu, click Save As/Export.

  2. In the Save As dialog box, click To an External File or Database, and then click OK.

  3. In the Save as type list, select the type of file you want to export.

  4. To export files on an FTP server, enter a valid FTP URL in the File name box.

    – or –

    In the Save in box, click Internet Locations (FTP) and select a previously defined FTP site.

    – or –

    In the Save in box, click Add/Modify FTP Locations, and then specify a new FTP site and browse its files.

  5. Click Export.

You can also import and link any Access­compatible external data file, except Access databases and ODBC data sources, by using an FTP or HTTP connection. An FTP or HTTP connection is only maintained long enough to perform a single transaction. Therefore, when you import or link a file located on an FTP or HTTP server, Access copies the data file to the user's local cache. Access then imports or links to the data file in the local cache. For this reason, files linked with an FTP or HTTP connection are read­only.

To import or link data from external data sources on Internet servers

  1. On the File menu, point to Get External Data, and then click either Import or Link Tables.

  2. In the Files of type list, click the type of file you want to import or link.

  3. To import or link files on an FTP server, enter a valid FTP URL in the File name box.

    – or –

    In the Look in box, click Internet Locations (FTP) and select a previously defined FTP site.

    – or –

    In the Look in box, click Add/Modify FTP Locations, and then specify a new FTP site and browse its files

  4. To import or link files on an HTTP server, enter a valid HTTP URL in the File name box.

  5. Click Import or Link.

Displaying Web Pages and Other Documents in
Microsoft Access Forms

The Microsoft WebBrowser control is an ActiveX control that you can use on your Access database application forms to browse Web sites, view Web pages and other documents, and download data located on the Internet. The WebBrowser control is useful in situations where you do not want to disrupt the work flow in a database application by switching from Access to a Web browser or other document­viewing program.

For example, the following illustration shows the Browse Saved Hyperlinks form in the Developer Solutions sample application. (This sample application is installed in the Microsoft Office\Office\Samples folder when you choose a Custom installation during Setup and select the Sample Databases option under the Microsoft Access option). You can use the Browse Saved Hyperlinks form to browse addresses saved in the Links table.

The WebBrowser control can display any Web page that Microsoft Internet Explorer version 3.0 can display. For example, the WebBrowser control can display pages that include any of the following features:

  • Standard HTML and most HTML enhancements, such as floating frames and cascading style sheets

  • Other ActiveX controls

  • Most Netscape plug­ins

  • Scripting, such as Microsoft Visual Basic Scripting Edition (VBScript), JScript, and most JavaScript

  • Java applets

  • Multimedia content, such as video and audio playback

  • Three­dimensional virtual worlds created with Virtual Reality Modeling Language (VRML)

In addition to opening Web pages, the WebBrowser control can open any ActiveX document, which includes most Office documents. For example, if Office is installed on a computer, an application that uses the WebBrowser control can open and edit Microsoft Excel spreadsheets, Word documents, and PowerPoint presentations from within the control. Similarly, if Excel Viewer, Word Viewer, or PowerPoint Viewer is installed, users can view those documents within the WebBrowser control.

With the WebBrowser control, users of Microsoft database applications can browse sites on the Web, as well as folders on a hard disk or on a LAN. Users can follow hyperlinks by clicking them or by typing a URL into a text box. Also, the WebBrowser control maintains a history list that users can browse to view previously browsed sites, folders, and documents.

Note   Additional ActiveX controls that you can use to work with content on the Internet or an intranet are available in Microsoft Office 97 Developer Edition.

For more information about using the WebBrowser control, see "Using the WebBrowser Control" in Chapter 21, "Developing Applications for the Internet and the World Wide Web," in Building Applications with Microsoft Access 97. For more information about this and other Microsoft Press books, see "Microsoft Press Titles" in Appendix E, "Other Support Resources."

Top

Web Support in Microsoft Excel

Excel supports Office­wide Web features, such as hyperlinks and the Web toolbar. In addition, Excel supports importing and exporting HTML documents, Web queries, and Web forms.

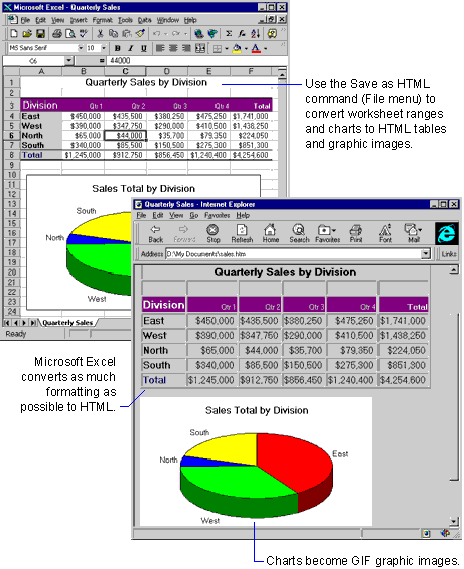

Converting Microsoft Excel Data and Charts to HTML

The Internet Assistant Wizard is an add­in that provides HTML conversion functionality for Excel. With the Internet Assistant Wizard, you can:

  • Convert worksheet ranges to HTML tables.

  • Convert charts to GIF images.

  • Create HTML tables or GIF images to be inserted into HTML documents, or create ready­to­view HTML documents that contain the tables or GIF images.

  Note   In Windows, the Internet Assistant Wizard is installed by the HTML add­in; however, the HTML add­in is not installed by default when you choose a Typical installation during Setup. To install the add­in, rerun Setup, click Add/Remove, and select the Web Page Authoring (HTML) option.

  Note   On the Macintosh, the Internet Assistant Wizard is installed by the HTML add­in; however, the HTML add­ins is not installed by default when you choose an Easy installation during Setup. To install the add­in, run Microsoft Office Installer and click Custom Install. Select the Web Page Authoring option, and then click Install.

To convert Excel data to HTML

  1. Open the workbook that contains the worksheet ranges or charts you want to convert.

  2. On the File menu, click Save As HTML.

  3. Follow the instructions that appear on your screen.

Note   If you insert the table based on your Excel data into an existing HTML file, you must edit the HTML file before you can insert the table. Open the HTML file in a text editor (such as Notepad) and type <!­­##Table##­­> at the location where you want the table to appear. The Internet Assistant Wizard replaces this string with the table.

HTML Conversion Issues for Worksheet Ranges

When you convert a worksheet range to an HTML table, the following elements are preserved:

  • Font size and color

  • Font formatting, such as bold or underlined text

  • Cell background color

  • Merged cells

Note   In the conversion, Office hyperlinks are converted to HTML hyperlinks.

GIF Image Conversion Issues for Charts

The Internet Assistant Wizard converts charts to GIF format images with a high degree of fidelity. Because the GIF images are static, however, all links back to the source data on which the chart data series or labels are based are broken.

Using Microsoft Excel Web Queries

To query data from a source on the Internet or your intranet and then import the data into Excel, you can use the Run Web Query command (Data menu, Get External Data submenu). Once you import the data, you can manipulate, analyze, and format it. For example, you can create a Web query that retrieves a current product price from a database on your intranet.

  Tools and Utilities   The Office Resource Kit Tools and Utilities include the Excel Web Connectivity Kit. The Connectivity Kit includes detailed instructions for creating Web queries, as well as several sample queries. For more information, see "Microsoft Excel 97 Web Connectivity Kit" in Appendix A, "Microsoft Office Resource Kit Tools and Utilities."

  World Wide Web   For more information about Excel Web queries, connect to the Excel 97 Web Queries Web site at:

http://www.microsoft.com/excel/webquery/

Collecting Database Input with Web Forms

   This section describes the Web Form Wizard add­in, which you can use to create data­entry forms on your intranet. The Web Form Wizard is available in Excel 97 for Windows.

Overview

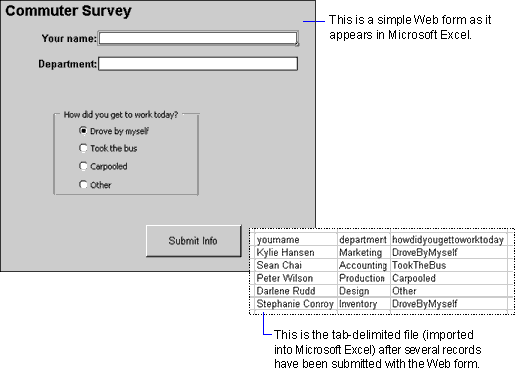

The Web Form Wizard is an Excel add­in that you can use to create data entry forms (called Web forms) in Excel to capture user input to a database over the Internet or an intranet.

Note   The Web Form Wizard is installed by the Web Form add­in; however, the Web Form add­in is not installed by default when you choose a Typical installation during Setup. To install the add­in, rerun Setup, click Add/Remove, and select the Web Page Authoring (HTML) option.

Web forms have a client/server architecture. On the client side, the user opens a Web form in Excel, enters data, and then submits it. On the server side, scripts created by the Web Form Wizard write this data to one of several formats, depending on your server setup and database tools. Following is a description of how a user might complete a Web form.

  1. The user requests a Web form by clicking a hyperlink in a Web browser, by opening the Web form on a network server, or by activating an attached document in an e­mail message.

  2. The server downloads the Web form to the user's computer. Because the Web form is an Excel workbook, Excel starts.

  3. The user fills out the Web form and then clicks the Submit Info button. Microsoft Excel submits the user's information using the HTTP protocol and then closes the Web form without saving changes so that it is ready for future use.

  4. On the server side, a script parses the submission into a database record and then sends a submission confirmation to the user's Web browser.

Web forms are best suited for data input. To use Web forms for database queries, you must manually modify the HTML extension (HTX file) created by the Web Form Wizard.

Client Requirements

On the client side, Web forms (which are Excel workbooks) require the Excel program. If a user opens a Web form from a Web browser (by clicking a hyperlink, for example) and the browser supports Active Documents, Excel starts within the Web browser and loads the form.

Because Web forms require Excel to handle user input, Web forms are best suited to intranets. Web forms work over the Internet as well, however, because most communication between the client and server is in standard TCP/IP format.

Note   Because Excel Viewer does not support data input, you cannot use it in place of Excel on the client computer.

Server Requirements and Capabilities

Web forms support both the Microsoft Internet Information Server Application Programming Interface (ISAPI) and Common Gateway Interface (CGI) protocols.

Note   The Web Form Wizard creates the necessary files to allow the client to insert new records into a database file. To perform more complex actions, however, such as searching a database or retrieving information, you must modify the Internet Database Connector (IDC) file created by the wizard. For more information about modifying an IDC file, see your Web server documentation.

Web Forms and IIS

If you are running IIS on your Web server, you can use Web forms to interact with any Open Database Connectivity (ODBC)­compliant database such as Microsoft SQL Server or Access.

With an IIS­based Web server and Web forms you can:

  • Create an ODBC­compliant database on the server.

  • Insert, delete, or update records in the database based on user input.

  • Query the database based on user input.

When you create a Web form for a server running IIS, the Web Form Wizard generates four files:

  • The Web form itself, which is an Excel workbook.

  • An Access MDB file to contain the data records generated with the Web form. Each control of the Web form is mapped to a field in the Access database. When creating the Web form, you can specify that you want user submissions to be appended to an existing Access database instead of creating a new database.

  • An IDC file to record information about the user and data source.

  • An HTX file that describes the confirmation reply sent to the user's Web browser after the user submits data.

Web Forms and CGI

If you are running CGI on your Web server, you can use Web forms to add records to a tab­delimited database. You can then import this database into Access or Excel for further manipulation or analysis.

When you create a Web form for a server running CGI, the Web Form Wizard generates three files:

  • The Web form itself, which is an Excel workbook.

  • A Perl script to parse the users' submissions and insert them into a tab­delimited text file.

  • A text file that contains the parsed data. The first record of the text file contains the Web form's control names.

Creating a Web Form

Creating a Web form involves the following steps:

  1. Design the form in Excel, and then start the Web Form Wizard.

  2. Specify the controls or cells on the worksheet in which the user will supply data and specify the corresponding labels for each control or cell.

  3. If you are running your Web server under Windows NT Server, specify whether your Web server runs IIS or CGI.

  4. Specify whether Excel should save the Web form as an Excel workbook

    – or –

    If you are using FrontPage to administer your Web site, add the Web form to your FrontPage Web and specify the path to which to save the form.

  5. Specify the confirmation message and the URL path to the database where the data is to be submitted.

  6. If you are running IIS, add an ODBC data source and edit the IDC file created by the Web Form Wizard.

Each of these steps is described in more detail in the following sections.

Design the Web Form and Start the Web Form Wizard

When you design a Web form in Excel, use only the Forms toolbar (View menu, Toolbars submenu). The Web Form Wizard only supports forms created with the Forms toolbar. It does not support controls created with the Control Toolbox or by any other means.

The wizard converts control names to database field names according to the following rules:

  • a to z are accepted without restrictions.

  • A to Z are converted to lowercase.

  • 0 to 9 are accepted as long as they do not appear at the beginning of a control name.

  • All other symbols are ignored.

  • All control names must be unique. If the Web Form Wizard encounters duplicate control names, it numbers them sequentially.

Tip   When entering control names in worksheet cells, add a colon to the name — for example Address: The Web Form Wizard now adds both the label and the cell reference to the list of available controls. This saves you from having to add the labels and cell references manually to the list.

The Web Form Wizard generates a Submit Info button and adds it to the Web form. Do not create a Submit Info button yourself.

Tip   When using worksheet cells as data input fields, you can use the data input features in Excel, such as data validation (Data menu), conditional formatting (Format menu), and cell and object protection (Format menu). For more information about using these data input features, see Excel online Help.

To start the Web Form Wizard, click the Web Form command (Tools menu, Wizard submenu). The wizard displays a Welcome panel; click Next to continue.

Specify the Data Input Controls and Cells

In Step 2 of the wizard, select the data input controls you want to use. You can remove any of the values that appear in the Controls and cells box or add values that do not appear.

For detailed information about these options, click the Help button.

Specify Your Web Server Software

In Step 3, specify the software running on your Web server: IIS or CGI. You can create or add to an Access database only if your Web server is running IIS. For CGI Web servers, the Web Form Wizard creates a tab­delimited file. You can later import this file into Access or Excel for more analysis.

For detailed information about these options, click the Help button.

Choose the Results Format and Path

In Step 4, specify whether you want the form to be saved as an Excel workbook on your Web server or added to an existing FrontPage server by clicking one of the following options:

  • Save the result as an Excel file

    If you select this option, you must also specify a location in the File path box.

  • Add the result to your FrontPage Web

    If you select this option, you must have a Web site open in the FrontPage Explorer. If FrontPage is not running, the Web Form Wizard starts it, and you must then open a Web site.

    In the File path box, specify a location on your Web server where you want the Web form and its related files stored. If the path you specify differs from the path of the workbook in which you initially designed the form, you must also specify a Web form file name. The other files created by the Web Form Wizard are given the same base file name. For example, if you name your Web form Address.xls and specify a CGI interface, the Web Form Wizard creates Address.pl (the Perl script) and Address.txt (the tab­delimited text file) in the same location as Address.xls.

For detailed information about these options, click the Help button.

Design the Confirmation Message

In Step 5, design the confirmation message you want returned to the user's Web browser after the user has submitted data.

In the URL path box, type the HTTP address of the location of the database file or tab­delimited file you specified in Step 4 of the wizard.

For detailed information about these options, click the Help button.

In Step 6 of the Web Form Wizard, click Finish to complete your Web form.

Add an ODBC Data Source and Edit the IDC File on Your Web Server (IIS only)

If you selected an IIS Web server in Step 3 of the wizard, you must add an Access system data source in the ODBC control panel and then edit the IDC file created by the wizard on your Web server. You may also want to move the files created by the wizard to different folders on your Web server.

Tip   For better security you can move the IDC, HTX, and MDB files to a folder on your Web server with execute access but not read access. Set these properties for the folder through IIS Directory Properties. The XLS form itself, however, must remain in a folder with read access.

To add an ODBC system data source

  1. On the Windows NT Server 4.0 Start menu, point to Settings, and then click Control Panel.

    – or –

    In Windows NT Server 3.51, double­click Control Panel in the Main group in Program Manager.

  2. Double­click ODBC.

  3. Click the System DSN tab, and then click Add.

  4. In the Create New Data Source dialog box, click Microsoft Access Driver, and then click Finish.

  5. In the Data Source Name field, enter a descriptive name for your Excel Web form; for example, Commuter Survey Form.

  6. If you want to apply an authorization logon name and password, click Advanced.

    This is not required to submit records to the database through the Web form you have created.

  7. Click Select, and then select your MDB file on your Web server.

    From this point on, do not move your MDB file from this location.

To edit the IDC file

  1. On your Web server, open the IDC file created by the Web Form Wizard in a text editor.

  2. In the IDC file, replace the text Your data source with the data source name you specified in the preceding procedure.

  3. If you also specified an authorization logon name and password, replace the text Your username and Your password with the values you specified.

Top

Web Support in Microsoft Outlook 97

  Outlook 97 for Windows provides a central point from which to communicate with others through the Internet, and provides ways to connect intranets within your organization to the Internet.

This section describes the Internet­related capabilities of Outlook. These include working with Outlook as a client for Internet mail, using hyperlinks in Outlook items, and using Outlook to organize and display Web pages.

Working with Internet Mail

As an administrator, you have many ways to set up your workgroup to send and receive Internet mail with Outlook. If your organization uses Microsoft Exchange Server, Internet mail is handled by the Internet Mail Connector. If your organization does not use Exchange Server, e­mail can be sent to and received directly from the Internet using another e­mail service provider that is compatible with the Simple Mail Transfer Protocol (SMTP) or Post Office Protocol (POP) version 3. SMTP and POP3 are MAPI service providers that are installed by default with Outlook.

With an Internet mail connection, your workgroup can use Internet messaging for the following activities in addition to sending and receiving messages:

  • Connect to the Internet from a remote location and download messages.

    For example, a traveling salesperson can check for new e­mail while on the road.

  • Use rules to process incoming and outgoing e­mail.

    For example, a user can have Outlook file all messages from a particular Internet address in a separate folder.

  • Send and receive group scheduling meeting requests.

    For example, a meeting organizer can send a meeting request to offsite clients or suppliers.

  • Assign tasks and receive notification when tasks are updated or completed.

    For example, a manager can send a task request to an employee who works at home.

When a user types an Internet e­mail address in the To box, Outlook automatically resolves and properly formats the address by removing spaces and changing commas to periods. For example, if a user types R_King @ NorthWind,com Outlook formats the address as R_King@NorthWind.com

Using Hyperlinks in Messages

Outlook automatically recognizes Internet addresses (URLs) in the body of e­mail messages and converts them to hyperlinks. Internet users can click the hyperlink to view the Web page with Microsoft Internet Explorer (included with Office) or another Web browser.

When you type one of the following Internet protocols in the text box of an e­mail message or other item, Outlook creates a hyperlink from the text. If the Internet address includes spaces, you must enclose the entire address in angle brackets (< >). For example, type <file://c:\My Documents\MyFile.doc>

Internet protocols recognized by Outlook
file https Outlook
ftp mailto prospero
gopher news telnet
http nntp wais

Using Outlook as a Web Browser

Outlook provides a number of ways to organize and display Web pages. Users can use the Contacts list to keep track of contacts' Web sites, open the Web history folder from within Outlook, or create and share a catalog of Web sites in a public folder.

Keeping Track of Contacts' Web Sites

Outlook provides a way to keep an Internet address for each contact in the Contact list, so you can go directly to a contact's Web page from Outlook. While this feature is useful in individual contact lists, it can also be used by a workgroup. For example, a sales department can maintain a list of customers in a public folder of Outlook contacts. The public folder could include a custom view that shows each customer's name, business phone number, e­mail address, and Web address.

Follow these general steps to create a list of contacts' Web addresses in a public folder.

  1. Set up a public folder that can contain contact items.

    For more information about how to set up public folders, see "Microsoft Exchange Public Folders" in Chapter 31, "Workgroup Features in Microsoft Outlook."

  2. Create or modify a view to show only the Full Name, Business Phone, E­mail, and Web Page fields.

  3. Add or import contacts to the public folder.

Using the Web History Folder in Outlook

The Windows\History folder contains a list of shortcuts to recently visited Web sites in Microsoft Internet Explorer 3.0. Unlike most folders, the History folder cannot be viewed or opened from within Outlook. (Microsoft Internet Explorer 3.0 uses shell extensions that are not compatible with Outlook.) To use the History folder from within Outlook, create a shortcut to the History folder and keep it in the Favorites folder.

To create a shortcut to the Web History folder

  1. In the Windows folder, right­click the History folder, and then click Create Shortcut on the shortcut menu.

  2. On the Outlook Bar, click the Other group, and then drag the shortcut you just created from Windows Explorer to the Favorites folder in the Outlook Bar.

Tip   To use a shortcut in the History folder from within Outlook, click Favorites in the Other group on the Outlook Bar, double­click the shortcut to the History folder, and then double­click the shortcut you want in Windows Explorer.

Creating a Catalog of Web Sites to Share

If your organization uses the Web as a source of information and also uses Exchange Server as a mail server, you can set up a public folder to organize Web site shortcuts for users. Keeping Web site shortcuts in a public folder gives users a way to collect, categorize, sort, and group the Web sites in different ways. When a user double­clicks a shortcut, the Web browser starts up and displays the Web page.

Follow these general steps to create a catalog of Web sites in a public folder:

  1. Set up a public folder that can contain mail items.

    For more information about how to set up public folders, see "Microsoft Exchange Public Folders" in Chapter 31, "Workgroup Features in Microsoft Outlook."

  2. Create or modify a view to show only the fields you want to use.

  3. In your Web browser, locate a Web page you want to include in the catalog and create a shortcut to the Web page.

    In Microsoft Internet Explorer 3.0, you create a shortcut with the Create Shortcut command (File menu).

  4. In Outlook, open the public folder you created and drag the Web page shortcut from your desktop to the public folder.

  5. For each Web page you want to add to your catalog, create a shortcut and drag it to the public folder.

Customizing the View of a Web Page Catalog

You can create a custom view to organize a list of Web sites for your organization. For example, you can create a table view that includes custom text fields for owner, audience, address, and page type (such as internal, customer, supplier, and so on). Users can click the field headings to sort Web sites by any of these fields.

Top

Web Support in Microsoft PowerPoint

In addition to the Office­wide Web features such as hyperlinks and the Web toolbar, PowerPoint includes special features designed for publishing presentations on the Internet or an intranet. This section describes the Web authoring features of PowerPoint.

Performance improvements in PowerPoint have also made PowerPoint presentations more practical for use over a network. When you open a PowerPoint file, PowerPoint now loads only one slide at a time, so you do not wait for an entire presentation to load before you can view it. The text is retrieved first, followed by graphics and linked or embedded objects. These improvements mean that you have quicker access to the presentation online. For more information about ways to improve the performance of PowerPoint, see "Optimizing Microsoft PowerPoint" in Chapter 7, "Customizing and Optimizing Microsoft Office."

Using Action Settings as Hyperlinks

PowerPoint supports Office hyperlinks with the Hyperlink command (Insert menu) and the Hyperlink to option in the Action Settings dialog box (Slide Show menu). You can make any object on a slide into a hyperlink that goes to another slide in the active presentation, another presentation, another file, or a URL.

To add a hyperlink to a slide

  1. Select the object or highlight the text that you want to make into a hyperlink.

  2. On the Slide Show menu, click Action Settings, click Hyperlink to, and then enter the destination for the hyperlink.

    – or –

    On the Insert menu, click Hyperlink, and then enter a destination for the hyperlink in the Link to file or URL box; if you want to go to a particular location within the destination, enter it in the Named location in file (optional) box.

    When a user clicks the object during a slide show, the hyperlink goes to the destination you specify.

Note   When you set hyperlinks through the Action Settings dialog box, a hyperlink to another presentation opens a particular slide in the presentation, and a hyperlink to another file opens the file. If the other file is an Office Binder document, the hyperlink opens a particular section of the binder.

To standardize the look of interactive buttons, you can also add action buttons to a slide. Action buttons are graphic images designed to look like buttons. When you add one to a slide, the Action Settings dialog box (Slide Show menu) appears automatically so you can specify a destination for the action button.

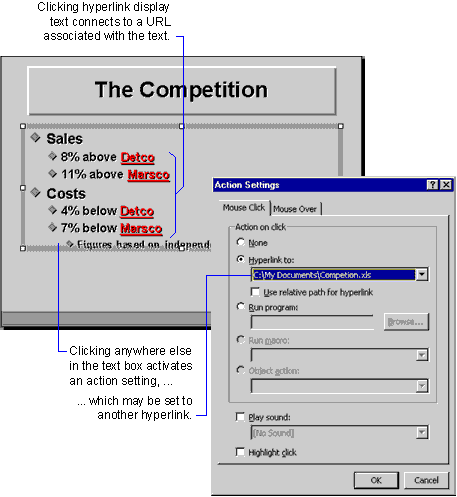

You can create hyperlinks for objects, such as AutoShapes and text boxes, and you can create hyperlinks for text strings. Because text in PowerPoint exists within a text object, PowerPoint maintains distinct hyperlinks for a text string and for the text object that contains the string. For example, you can have a text box with action settings assigned to it, and you can create a hyperlink within the text box, as shown in the following illustration.

Note   Although you cannot assign a hyperlink to grouped objects, you can group objects with hyperlinks attached to them.

PowerPoint uses two of the three accent colors in the current color scheme to format hyperlink display text. A hyperlink appears in the first color until you click it; then it appears in the second color. For more information about color schemes, see Chapter 38, "Microsoft PowerPoint Architecture." For more information about hyperlinks, see "Creating Hyperlinks in Office Documents" in Chapter 24, "Integrating Microsoft Office with Your Intranet."

Creating Web Documents

PowerPoint includes new templates and an enhanced AutoContent Wizard to help you create Web documents easily. You can use the online templates to create a home page, an electronic information kiosk, an online personnel directory, and several other kinds of online documents.

To use a template for creating an online document, look for templates with (Online) in their names — for example, Business Plan (Online). The online templates contain graphic elements, such as buttons, bullets and backgrounds, and other objects tailored for using and viewing presentations online.

For information about customizing the templates used by the AutoContent Wizard, see "How You Can Customize PowerPoint" in Chapter 38, "Microsoft PowerPoint Architecture."

Saving Presentations as HTML Documents

By saving your presentation in HTML, you make it possible for anyone with a Web browser to view it. PowerPoint comes with many templates designed for creating Web documents, but you are not restricted to these. You can save any presentation in HTML.

To save a presentation in HTML

  1. On the File menu, click Save as HTML.

  2. Follow the instructions in the Save as HTML Wizard.

The Save as HTML Wizard prompts you to specify a folder in which to store the HTML files it creates. After the wizard stores the HTML files in this folder, you can move them to your Web site and connect them to existing Web pages.

The Save as HTML Wizard uses a set of templates to build HTML files from your presentation. If you are familiar with HTML tags, you can modify these templates (TPL files) by opening them in a text editor (such as Notepad) and modifying the HTML code created by the wizard.Before you modify the HTML templates, it is a good idea to make backup copies of the original TPL files.

  Note   In Windows, the Save as HTML Wizard is not installed by default when you choose a Typical installation during Setup. To install the wizard, rerun Setup, click Add/Remove, and select the Web Page Authoring (HTML) option.

  Note   On the Macintosh, Save as HTML Wizard is not installed by default when you choose an Easy installation during Setup. To install the wizard, run Microsoft Office Installer and click Custom Install. Select the Web Page Authoring option, and then click Install.

Using Microsoft PowerPoint Animation Player for ActiveX

The PowerPoint Animation Player is a PowerPoint add­in that you use with your Web browser to play animated PowerPoint presentations. The Animation Player is similar to a PowerPoint viewer, which you can use to view a presentation; but unlike the viewer, the PowerPoint Animation Player integrates with your browser to play presentations over the Internet or an intranet in real time.

For users to play a PowerPoint animation over the Internet or an intranet, they must have Microsoft Internet Explorer version 2.0 or later or Netscape Navigator version 1.22 or later installed on their computers, and they must install the PowerPoint Animation Player.

  Tools and Utilities   The Office Resource Kit Tools and Utilities include the PowerPoint Animation Player. For information about installing and using the Animation Player, see "PowerPoint Animation Player" in Appendix A, "Microsoft Office Resource Kit Tools and Utilities."

If you want colleagues on the Internet to view your presentation online, you must first save the presentation as a PowerPoint animation.

To save a presentation as a PowerPoint animation

  1. On the File menu, click Save as HTML.

  2. In the Graphic type panel of the Save as HTML Wizard, click the PowerPoint animation option.

  3. Follow the instructions in the Save as HTML Wizard.

The Save as HTML Wizard prompts you to specify a folder in which to store the PowerPoint animation (PPZ) file and the HTML file it creates. You use the HTML file to gain access to the PowerPoint animation file from a Web browser. If you are familiar with HTML scripting, you can open this file and edit it to get the results you want. To see how your PowerPoint animation looks, open it in your Web browser.

To view a PowerPoint animation

  • Double­click the HTML file that corresponds to the PowerPoint animation file.

    In Microsoft Internet Explorer 3.0 or Netscape Navigator version 2.0 or later, the PowerPoint animation plays directly in your Web browser.

    In Microsoft Internet Explorer 2.0 or Netscape Navigator 1.22, a hyperlink to the PowerPoint animation is displayed; click the hyperlink to play the animation.

When you are ready to publish the presentation on the Web, copy both the PPZ file and the HTML file to a folder on the server. You must also set up the Web server so that it supports PowerPoint animations.

To add a PowerPoint animation to your Web site

  1. Copy the PPZ and HTML files created by the Save as HTML Wizard to a folder on the Web server.

  2. Add a hyperlink from an existing Web page to the new HTML file.

Tip   You can also use FrontPage to add a PowerPoint animation to your Web site. For information about FrontPage, see "Tools for Intranet Creation and Administration" in Chapter 24, "Integrating Microsoft Office with Your Intranet."

The procedure for setting up the Web server depends on the browser you want to support and the software on the server. If users are viewing Web documents with Netscape Navigator 2.0 or later, configure the Web server to send the PowerPoint animation files as a special type of file to avoid having users receive the message "Netscape was unable to find a plug­in for application/octet­stream." Add the following Multipurpose Internet Mail Extensions (MIME) mapping to the server.

For this PowerPoint file type Add this MIME mapping
PPTapplication/mspowerpoint
PPZapplication/mspowerpoint
PPSapplication/mspowerpoint
POTapplication/mspowerpoint

  If you are using the Microsoft Internet Information Server (IIS), set up the Web server to support PowerPoint animations by modifying the Windows registry. In the registry key HKEY_LOCAL_MACHINE\System\CurrentControlSet\Services\InetInfo\Parameters\MimeMap, add the following value entries:

  • "application/ms­powerpoint,ppt,,5"=""

  • "application/ms­powerpoint,ppz,,5"=""

  • "application/ms­powerpoint,pps,,5"=""

  • "application/ms­powerpoint,pot,,5"=""

For more information about MIME mapping, consult the documentation for the server you are using. For more information about the PowerPoint Animation Player, point to Microsoft on the Web on the PowerPoint Help menu, and click Product News (requires Internet access).

Using PowerPoint Central

  In Windows, you can click PowerPoint Central (Tools menu) to open a special presentation that contains hyperlinks to Internet sites and the Office Value Pack. PowerPoint Central is included when you choose a Typical installation during Setup.

Note   The CD­ROM version of Office includes the Office Value Pack, a collection of application extras such as clip art, maps, sounds, presentation enhancements, and utilities. For more information about the Office Value Pack and how to use its contents, see the Help file Valupack.hlp in the ValuPack folder on the Office CD. If you have Web access, you can also point to Microsoft on the Web (Help menu) in any Office application and then click Free Stuff.

The initial slide in the PowerPoint Central presentation provides a main menu from which you can go to the Internet or the Value Pack for clip art, videos, sound clips, graphic effects, templates, tips and hints, how­to information, and an updated version of the PowerPoint Central presentation itself.

If the PowerPoint Central presentation works well for your organization, you can create your own similar presentation. For example, you could create a PowerPoint presentation that links users to corporate information, files, and other resources on the Internet or an intranet. You could then create a macro or add­in that adds a command to PowerPoint for running the presentation. For information about customizing PowerPoint with macros and add­ins, see "How You Can Customize PowerPoint" in Chapter 38, "Microsoft PowerPoint Architecture."

Top

Web Support in Microsoft Word

Word supports the Office­wide Web features, such as hyperlinks and the Web toolbar. In addition, Word includes HTML authoring tools for creating Web pages.

The main benefit of using Word as an HTML authoring tool is that you can use your existing knowledge of Word and most of the features in Word immediately, without ever viewing HTML code directly. Detailed information about using the HTML authoring features in Word is included in Microsoft Word Help (Help menu).

There are several ways to use Word to create Web pages in HTML.

If you want to Use this method
Create one of several predefined HTML documents such as a form or personal home page Use the Web Page Wizard
Create an HTML document other than those supported by the Web Page Wizard Use the Blank Web Page template
Convert one or more existing Word documents to HTML Save in HTML

Each of these methods is described in the following sections.

Using the Web Page Wizard

Use the Web Page Wizard to create predefined Web pages, such as multicolumn pages, forms, or personal home pages. The Web Page Wizard offers a variety of text formats and graphic images for each type of Web page it supports. After you have created the Web page, use the Word HTML authoring tools to modify it.

Tip   In addition to using the Web Page Wizard to create a predefined Web page, you can also use the wizard as a starting point for other Web pages. For example, you can create a multicolumn Web page, and then paste the table portion of the HTML code into another Web page.

To start the Web Page Wizard

  1. On the File menu, click New.

  2. Click the Web Pages tab, and then double­click Web Page Wizard.

  3. Follow the instructions that appear on your screen.

  Note   In Windows, the Web Page Wizard is not installed when you choose the Typical installation during Setup. To install the wizard, rerun Setup, click Add/Remove, and select the Web Page Authoring (HTML) option.

  Note   On the Macintosh, the Internet Assistant Wizard is installed by default when you choose an Easy installation during Setup. To install the add­in, run Microsoft Office Installer and click Custom Install. Select the Web Page Authoring option, and then click Install.

Using the Blank Web Page Template

When you create a blank Web page, Word attaches the HTML template to a blank document.

To create a blank Web page

  1. On the File menu, click New.

  2. Click the Web Pages tab, and then double­click Blank Web Page.

Saving Existing Documents in HTML

If you want to convert an existing Word document to HTML, use the Save as HTML command (File menu).

To convert a Word document to HTML

  1. Open the document you want to convert.

  2. On the File menu, click Save as HTML.

  3. In the Save as HTML dialog box, enter a file name.

  4. Make sure HTML Document appears in the Save as type box, and then click Save.

Note   Not all Word document elements and formatting are supported in HTML. Some elements and formatting are lost when you save a Word document in HTML. For example, comments inserted with the Comments command (Insert menu) are lost when you save in HTML. For the complete list of lost or changed elements, see Word online Help.

   After you save a Word document in HTML, you can preview it in your Web browser by clicking the Web Page Preview button (Standard toolbar).

Tip   After you convert Office documents to HTML, you can use the Web Publishing Wizard to help you post your content to the Web or to an intranet. For more information about posting to the Web, see "Publishing to the Web or an Intranet" in Chapter 24, "Integrating Microsoft Office with Your Intranet."

Using the Look Up Command to Search the Internet

  Word 97 for Windows allows you to search the Internet or your intranet from within a Word document using the Word Internet Lookup template, named Ilookup.dot.

The Internet Lookup template for Word allows you to:

  • Search the Internet for a word or short phrase from within Word using Microsoft Internet Explorer AutoSearch.

    Internet searching is enabled just by installing the Lookup template on a client computer (assuming the client has a properly registered browser and Internet access).

  • Search Web Find Fast indexes on your intranet.

    Web Find Fast index searches require that you use the System Policy Editor to change Windows registry settings, as described in "Enabling Searches of Web Find Fast Indexes" later in this section.

  Note   Although Web Find Fast searching is not supported directly in Word 98, you can search Web Find Fast indexes through a Web browser such as Microsoft Internet Explorer. For more information, see "Supporting Web Find Fast" in Chapter 26, "Finding Microsoft Office Documents on the Network."

  Tools and Utilities   The Office Resource Kit Tools and Utilities include the Word Internet Lookup template. For information about installing the template, see "Word Internet Lookup Template" in Appendix A, "Microsoft Office Resource Kit Tools and Utilities."

The Look Up command appears on the shortcut menu in Word. The buttons On the Internet and In Web FindFast Index also appear on the Look Up toolbar (View menu, Toolbars submenu).

Enabling Searches of Web Find Fast Indexes

The Look Up command can search indexes created by Web Find Fast on Web servers running under Windows NT Server or Windows NT Workstation. For more information about administering Web Find Fast, see "Supporting Web Find Fast" in Chapter 26, "Finding Microsoft Office Documents on the Network."

Note   If you do not enable Web Find Fast Index searches, the Look Up command can still search the Internet through Microsoft Internet Explorer AutoSearch from any client computer. The client computer must have a properly registered browser and access to the Internet.

To enable Web Find Fast index searches, you must enter information about your intranet's indexes in the Windows registries of all the users in your workgroup. Use the System Policy Editor and Office policy templates from the Office Resource Kit Tools and Utilities to edit the registries of all users in your workgroup. For more information about the System Policy Editor, see "Using Windows System Policies to Customize Office" in Chapter 7, "Customizing and Optimizing Office."

To enable searches of Web Find Fast indexes for your workgroup

  1. Start the System Policy Editor.

  2. On the File menu, click New Policy.

    – or –

    If you have previously created a system policy file, click Open on the File menu, and then select your Config.pol file (for Windows 95 clients) or Ntconfig.pol (for Windows NT Workstation clients).

  3. Select the user or workgroup you want to work with.

  4. In the Properties dialog box, expand the Policies tree to:

    User\Office 97\Internet\Web Search

  5. Select the Internet Lookup Options check box.

  6. In the Settings for Internet Lookup Options box, enter the registry values for the keys listed. If entering values for more than one Web Find Fast index, separate values with a semicolon (;).

    For more information about the value entries in the Internet Lookup Options subkeys, see "Web Search Policies" in Appendix C, "Registry Keys and Values."

  7. Close the System Policy Editor.

To distribute the new policy file, store it on a network server. For more information about using the System Policy Editor, see "The System Policy Editor" in Chapter 7, "Customizing and Optimizing Office."

Tip   The Look Up command can search Web Find Fast indexes on Web servers, but not Find Fast indexes on local or network drives. For information about the differences between the two, see "Differences between Find Fast and Web Find Fast" in Chapter 26, "Finding Microsoft Office Documents on the Network." To search Find Fast indexes on local or network drives, use the Text or property box in the Open dialog box (File menu) of Access, Excel, PowerPoint, Word, Office Binder, and Microsoft Project; in Outlook, use the Find Items command (Tools menu).

Using the Look Up Command in Word

The Look Up command can search for a single word or a short phrase from within a Word document.

To search for a single word

  1. Right-click the word you want to look up, and then click Look Up on the shortcut menu.

  2. If searches of Web Find Fast indexes have been enabled, click On the Internet or On Web FindFast Index.

    If you have enabled searches of multiple Web Find Fast indexes, you are also prompted to select the friendly name of the index you want to search.

Word submits your query to Microsoft Internet Explorer AutoSearch (for Internet searches) or to the Web Find Fast index (for Web Find Fast searches), and the results appear in your Web browser.

To search for a short phrase

  1. Select the text you want to look up.

    If you select more than three words, Word uses only the first three words of the selected text.

  2. Right­click the selected text, then click Look Up on the shortcut menu.

  3. If searches of Web Find Fast indexes have been enabled, click On the Internet or On Web FindFast Index.

    If you have enabled searches of multiple Web Find Fast indexes, you are also prompted to select the friendly name of the index you want to search.

Word submits your query to Microsoft Internet Explorer AutoSearch (for Internet searches) or to the Web Find Fast index (for Web Find Fast searches), and the results appear in your Web browser.


Top
Contents | << Previous | Next >> | Index
