This chapter describes the structure of Microsoft PowerPoint 97 for Windows and PowerPoint 98 for the Macintosh. It also explains how the various components of PowerPoint work together, and how the application handles changes that users make to those components. An understanding of the architecture of PowerPoint can help you take advantage of its features and may help you troubleshoot problems.

Top

How PowerPoint Is Structured

In a PowerPoint presentation, the primary unit for storing objects is the slide. Each slide contains one or more objects, such as title text, a bulleted list, drawing, picture, or chart. Each object on a slide can have associated formatting, such as font settings, color, and animation effects. A presentation consists of a collection of slides.

To give presentations a consistent appearance, PowerPoint uses masters and AutoLayouts. Masters determine the graphics, layout, and formatting for all the slides in a given presentation. AutoLayouts insert specific content at predefined placeholders on a slide — for example, the title and subtitle on a title slide, or the title and bulleted list on a bulleted list slide. Because AutoLayouts are part of the PowerPoint user interface, you cannot create or modify them. However, you can modify content on slides created from AutoLayouts or change the layout of a slide by modifying the master.

To automate the process of creating a presentation, PowerPoint uses templates, which are predefined sets of masters and color schemes. All templates contain a color scheme and a slide master. However, templates can also contain text, clip art, charts, drawings, and other elements. PowerPoint comes with several sample templates. You can also create your own templates or save any presentation as a template.

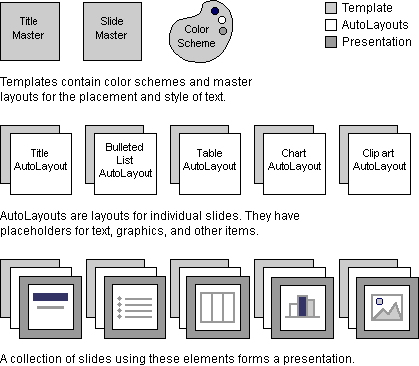

The following illustration shows how PowerPoint components fit together to create a presentation.

Presentations

A PowerPoint presentation is a collection of slides that share a template and settings for page size and orientation. The presentation file also stores formatting for speaker notes, audience handouts, and color schemes.

Presentations can have two different page­orientation settings: one for slides and another for notes, handouts, and outline pages. These settings apply to all the slides and to all the notes, handouts, and outline pages in a presentation, respectively. For example, a presentation may have all slides in landscape orientation and all notes in portrait orientation.

PowerPoint presentations are stored in a proprietary file format. You can save presentations in other native file formats, too, as shown in the following table.

Save presentations in this file format When you want to do this
PresentationSave the file in a format you can open and edit again in PowerPoint 97 (Windows) or PowerPoint 98 (Macintosh).
Windows metafileUse slides as graphics in documents you create with applications other than PowerPoint.
Outline or Rich Text Format Export the text of the presentation to applications other than PowerPoint.
Content templates Use the presentation as a template for creating other presentations.
Slide show formatDisplay the presentation file as a slide show.
PowerPoint add­in Store only the presentation's Visual Basic for Applications code. For more information about add­ins, see "Add-ins" later in this chapter
PowerPoint 95 Share the presentation with PowerPoint 95 users.
PowerPoint 95 & 97 Share the presentation with PowerPoint 95 users and still maintain a version with all the PowerPoint 97 (Windows) or PowerPoint 98 (Macintosh) features.
PowerPoint version 4.0 Share the presentation with PowerPoint 4.0 users.
PowerPoint version 3.0 Share the presentation with PowerPoint 3.0 users.
HTMLSave the presentation as a World Wide Web document.

Note   To save presentations as HTML documents, use the Save as HTML command (File menu) instead of the Save As command.

In addition to the native file formats PowerPoint supports, you can install export graphics filters and export modules to save presentations in custom formats. For information about custom export formats, see "Custom Export Formats" later in this chapter. For more information about exporting presentations, see Chapter 20, "Switching to Microsoft PowerPoint."

Slides

Each slide in a PowerPoint presentation stores its own data, including text, drawings, and other objects. Slides also store text in speaker notes, which are visible only in notes page view.

When a new slide is added to a presentation, the appropriate AutoLayout applies the active master and color scheme settings to each object. After the slide is created, however, you can modify objects without affecting other slides in the presentation and without affecting the template, color scheme, or master.

Note   Any object listed in the Insert Object dialog box (Insert menu) can be added to a slide. Double­clicking an object inserted this way opens the appropriate application for editing the object.

Some of the objects stored on slides can also be placed on speaker notes or audience handouts. Most objects can be placed on slides by using the AutoLayout that contains a placeholder for that object. The following sections describe the categories of objects that PowerPoint stores on slides.

Charts

When you insert a chart, PowerPoint runs Microsoft Graph. PowerPoint can also copy or import a chart from Microsoft Excel. Data in the chart is stored differently depending on how the chart is inserted onto the slide, as shown in the following table.

If the chart is inserted in this way Chart data is stored in this location
Created with Graph from within PowerPoint Data is stored on the current slide.
Copied from Excel and embedded on the slide Data is stored on the current slide.
Copied from Excel and then linked to the slide Data is stored in the source Excel workbook with a link to the current slide. Changes to Excel data are reflected automatically on the slide.
Copied from Excel and pasted as a graphic Data is stored in the source Excel workbook with no link to the current slide. The chart on the PowerPoint slide is a static graphic.

Clip Art

For Windows users, clip art images are installed in the Program Files\Microsoft Office\Clipart folder during Setup. For Macintosh users, clip art images are installed in Microsoft Office 98:Clipart. When you insert clip art in a presentation, PowerPoint runs the Microsoft Clip Gallery. You can also add new graphics files to the Clip Gallery. For information about how to add images to the Clip Gallery, see PowerPoint online Help.

Drawings

In PowerPoint, you create drawings with Office Art, the drawing layer shared by all the Office applications. Office Art provides graphic effects such as shadows, fills, and 3­D effects. Drawings include AutoShapes, lines, arrows, rectangles, ellipses, WordArt, and text boxes. Unlike text objects that are placed by AutoLayouts, the formatting of text created with Office Art is not constrained by the masters.

Did You Know?

PowerPoint uses twips as its unit of measurement when drawing graphics. A twip is one­twentieth of a point. When a two­point line on a Excel chart is pasted as a graphic in PowerPoint, for example, the weight of the line is 40 twips.

Movies

Movies are video clips stored in AVI (Windows) or QuickTime (Macintosh) format, or in a proprietary format if a media control interface driver is installed. To insert a movie onto a slide, use commands on the Movies and Sounds submenu or the Object command (Insert menu). Movie characteristics are described in the following table.

Movies inserted with this Have these characteristics
Movies and Sounds submenu commands (Insert menu) PowerPoint handles the movie as a native object and plays it directly, allowing limited editing through play options and animation settings. The movie is linked to, rather than embedded in, the slide.
Object command (Insert menu) The movie is a Media Player object. Double­clicking the movie runs Media Player, where you can edit the movie. Movies can be linked or embedded in a slide.

Note   Windows users can play QuickTime movies in PowerPoint if they have a QuickTime driver installed.

When you insert movies with commands on the Movies and Sounds submenu (Insert menu), you can retrieve the movie clip from the Clip Gallery or from a movie file. You can add any movie file to the Clip Gallery. For information about how to add movies to the Clip Gallery, see PowerPoint online Help.

  Tip   In Windows 95 and Windows NT Workstation 4.0, you can use a system policy to define the default location of video files listed in the Insert Movie dialog box for all PowerPoint users in your workgroup. (To display the Insert Movie dialog box, click Movies and Sounds on the Insert menu, and then click Movie from File.) In the System Policy Editor, set the following policy:

User\PowerPoint 97\Miscellaneous\Multimedia Directory

For more information, see "Using Windows System Policies to Customize Office" in Chapter 7, "Customizing and Optimizing Microsoft Office."

Pictures

Pictures are image files stored in formats such as JPEG, GIF, and BMP. PowerPoint includes graphics filters for importing image files. These graphics filters are installed during Setup in the Grphflt (Windows) or Graphics Filters (Macintosh) folder.

When you insert pictures with commands on the Picture submenu (Insert menu), you can retrieve the picture from the Clip Gallery or from a file. You can add any picture to the Clip Gallery. For information about how to add pictures to the Clip Gallery, see PowerPoint online Help.

  Tip   In Windows 95 and Windows NT Workstation version 4.0, you can use a system policy to define the default location of picture files shown in the Insert Picture dialog box for all PowerPoint users in your workgroup. To display the Insert Picture dialog box, click Picture on the Insert menu, and click From File. In the Windows System Policy Editor, set the following policy:

User\PowerPoint 97\Miscellaneous\Picture Directory

For more information, see "Using Windows System Policies to Customize Office" in Chapter 7, "Customizing and Optimizing Microsoft Office."

Sounds

Sounds are files stored in formats such as WAV and MIDI (Windows) and QuickTime (Macintosh). To insert a sound onto a slide, use commands on the Movies and Sounds submenu or the Object command (Insert menu). Sound characteristics are described in the following table.

Sounds inserted with this Have these characteristics
Movies and Sounds submenu commands (Insert menu) PowerPoint handles the sound as a native object and plays it directly, allowing limited editing through play options and animation settings. Sound files less than 100 KB are automatically embedded on the slide; files 100 KB or larger are linked. Sounds attached to animation effects are embedded regardless of file size.
Object command (Insert menu) A MIDI file is a Media Player object; a WAV file is a Sound Recorder object. Double­clicking the sound runs Media Player or Sound Recorder, where you can edit the sound. You can link or embed sounds in a slide.

When you insert sounds with commands on the Movies and Sounds submenu (Insert menu), you can retrieve the sound clip from the Clip Gallery or from a sound file. You can add any sound file to the Clip Gallery. For information about how to add sounds to the Clip Gallery, see PowerPoint online Help.

  Tip   In Windows 95 and Windows NT Workstation 4.0, you can use a system policy to define the default location of sound files shown in the Insert Sound dialog box for all PowerPoint users in your workgroup. (To display the Insert Sound dialog box, click Movies and Sounds on the Insert menu, and click Sound from File.) In the System Policy Editor, set the following policy:

User\PowerPoint 97\Miscellaneous\Multimedia Directory

For more information, see "Using Windows System Policies to Customize Office" in Chapter 7, "Customizing and Optimizing Microsoft Office."

Text Objects

Text objects use the formatting determined by the master. Text objects can be placed on slides, audience handouts, or speaker notes, as described in the following table.

This text objectCan be placed on these presentation elements
Body text on a note Notes
Body text on a slide (usually a bulleted list) Slide
Current dateSlide, handouts, or notes
FooterSlide, handouts, or notes
HeaderHandouts or notes
Page numberHandouts or notes
Slide numberSlide
SubtitleSlide
TitleSlide

Word Tables

When you insert a Microsoft Word table onto a slide, PowerPoint runs Word, and Word inserts the table on the slide. You can use Word commands to format the table. Word must be installed for you to use this feature.

Slide Masters and Title Masters

Masters determine placement and formatting of text objects, background objects, and background animation effects for every slide in a presentation. When a new slide is added to the presentation, the master elements are copied to the new slide. The placement and formatting of text objects can be changed on individual slides without affecting the master, but to modify background objects and background animation, you must edit the master, which affects all slides in a presentation. To return a modified slide's text objects to the master attributes, select the slide's current AutoLayout in the Slide Layout dialog box (Format menu), and then click Reapply.

PowerPoint presentations can have two masters: the slide master and the title master. All presentations have a slide master, but not necessarily a title master. If a presentation has no title master, you can create one by clicking New Title Master (Insert menu) in slide master view. The attributes of the new title master are based on those of the slide master.

Either the slide master or the title master is applied to a new slide, depending on the AutoLayout chosen for that slide. With the title slide AutoLayout, the new slide takes on the attributes of the title master. With any other AutoLayout, the new slide takes on the attributes of the slide master. Changes made to the title master affect only slides created from the title slide AutoLayout, and changes made to the slide master affect slides created from all other AutoLayouts.

The following sections describe slide characteristics that are determined by the slide or title master.

Layout

Masters control the position of placeholders for title, text, date, slide number, and footer. By default, all of these elements are included on the master. You may delete any of these elements from the master in master view. Deleted elements can be reinserted by selecting them in the Master Layout dialog box (Format menu). You can also change the size and position of these elements by modifying them in master view.

Text Styles

You can define the text style for titles, body text, subtitles, date, headers and footers, and slide numbers. Text styles defined on the title master are separate from text styles defined on the slide master, as shown in the following table.

On this masterYou can define these text elements
TitleTitle, subtitle, title slide date, title slide footer, slide number of title slide
SlideSlide title, body text, slide date, slide footer, slide number of slide

You can also change an individual slide's text styles by modifying them in slide view.

Backgrounds

Objects that appear on a master provide a background for every slide in a presentation. However, you can change the background of an individual slide. To modify the background fill or hide background objects on an individual slide, select the Omit background graphics from master option in the Background dialog box (Format menu).

Animation Effects

Animation effects applied to objects on a master become part of the background of every slide in the presentation. You can apply additional effects to objects on a slide in slide view, but to edit animation effects on a master, you must go to slide master or title master view. During the slide show, animation on the background is executed before animation on an individual slide.

Handout and Notes Masters

In addition to masters for slides, you can define masters for audience handouts, printed outlines, and speaker notes. These masters control the placement and style of headers, footers, dates, and page numbers. Handout masters and notes masters are stored with the presentation file.

Handout masters allow you to print two, three, or six slides per page. To print handouts, click one of the Handouts options in the Print what box in the Print dialog box (File menu). Handout masters also determine the format of printed outlines.

Notes masters place the image of one slide, along with notes relevant to that slide, on each notes page. Besides defining placement and style of headers, footers, dates, and page numbers, notes masters also allow you to choose a format for note text. You can print speaker notes directly from PowerPoint or export them to Word for more formatting options. For information about exporting speaker notes to Word, see "Sharing Information with PowerPoint" in Chapter 27, "Sharing Information with Microsoft Office Applications."

Templates

By using a single template for all your presentations, you can quickly create standard presentations with consistent formatting, graphic elements, text, and color schemes. The file format of templates and presentations is the same, but templates are designated by the file extension .pot.

PowerPoint supports two kinds of templates: design templates and content templates. Design templates contain a slide master and a color scheme. The design templates that come with PowerPoint also include title masters, and may have more than one color scheme. They are installed in the Presentation Designs folder, and appear on the Presentation Designs tab in the New Presentation dialog box (File menu). When you select a new template for an existing presentation, the Apply Design dialog box (Format menu) displays the templates stored in the Presentation Designs folder.

  Tip   In Windows 95 and Windows NT Workstation 4.0, you can use a system policy to define the default location of templates shown in the Apply Design dialog box (Format menu) for all PowerPoint users in your workgroup. In the System Policy Editor, set the following policy:

User\PowerPoint 97\Miscellaneous\Template Directory

For more information, see "Using Windows System Policies to Customize Office" in Chapter 7, "Customizing and Optimizing Microsoft Office."

Note   The Blank Presentation design template, which is the default template for creating new presentations, differs from other PowerPoint design templates; it contains a slide master but no title master.


My custom design templates have no title master

If you create a custom design template by opening any design template except Blank Presentation, the template includes a slide master and a title master. However, if you create a new design template based on the Blank Presentation template, it includes only a slide master. You can create a title master by clicking New Title Master (Insert menu) in slide master view. The new title master has the same attributes as the existing slide master.

In addition to color schemes and masters, content templates may include a set of slides, each with its own text, graphics, sound clips, charts, organization charts, or other content. These templates can stand alone as presentations, or you can use them to create new presentations. Basing a new presentation on a template that includes slides is similar to opening an existing presentation and saving it with a new name. The new presentation has all the attributes and content of the template.

PowerPoint includes several content templates that are installed during Setup in the Presentations folder. The templates appear on the Presentations tab in the New Presentation dialog box (File menu) or you can choose among them when you run the AutoContent Wizard. For information about the AutoContent Wizard, see "Customizing Templates Used by the AutoContent Wizard" later in this chapter.

A PowerPoint color scheme is a set of eight colors used for all the elements on a slide. Design templates include one or more color schemes. Whenever you add objects to a slide, PowerPoint uses the active color scheme to assign colors to the new object. You can choose a different color for the active object, choose a different color scheme for the active slide, change the color scheme for the entire presentation, or create your own color scheme.

Note   If you change an element on the slide to a color that is not in the color scheme, and then apply a new color scheme to the slide, the element retains the customized color.

Color schemes apply to speaker notes and audience handouts, as well as to slides. When you modify or create color schemes for notes and handouts, these changes do not affect color schemes for slides. However, when you delete color schemes for notes and handouts, the color schemes are deleted from the presentation file, and are not available for slides.

Color schemes are stored in the presentation file. You can modify or delete existing color schemes or add new color schemes to a presentation without affecting the template on which the presentation is based.

Top

How You Can Customize PowerPoint

PowerPoint default settings and paths are established when you run the Office Setup program. After Setup, you can customize these settings for a single user, a workgroup, or across an entire organization.

There are several ways to customize PowerPoint:

  • Through the Options (Windows) or Preferences (Macintosh) dialog box

    You can customize PowerPoint in the Options or Preferences dialog box (Tools menu). The settings you select here are stored in the Windows registry­or in System Folder: preferences (Macintosh).

  • With a macro

    A macro, which is written in Visual Basic code, automates one or more tasks.

  • With an add­in

    An add­in enhances PowerPoint with new custom features. Add­ins are dynamic-link libraries (DLLs) or Visual Basic code compiled from a source presentation.

  • With a custom template

    A custom template can include color schemes and text that helps users create presentations that have a unified look across your organization.

  • Through the Customize dialog box

    In the Customize dialog box (View menu, Toolbars submenu), you can customize the toolbars, menu bars, and shortcut menus included with PowerPoint, or you can create your own.

  • With custom export formats

    You can install your own graphics filters or export modules to export PowerPoint files in formats not supported by PowerPoint.

  • With AutoClipArt

    You can customize Clip Gallery keywords so that they map to specific clip art, pictures, sounds, and videos in the Clip Gallery.

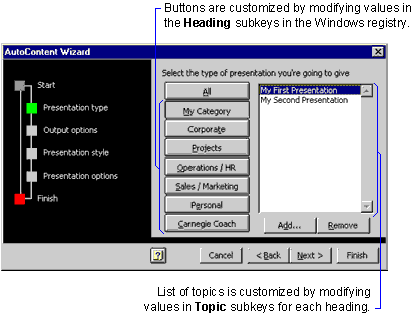

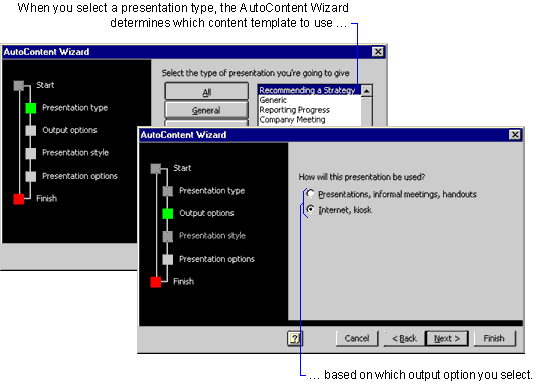

  • With a custom AutoContent Wizard

    You can customize the user interface of the AutoContent Wizard by modifying the Windows registry settings it uses.

These methods of customizing PowerPoint are described in the following sections. Some of these customizations are stored in the Windows registry, and some are stored in a separate file on the user's system.

User­Defined Options

In PowerPoint (as in all Office applications), you select options for viewing, editing, and saving documents in the Options (Windows) or Preferences (Macintosh) dialog box (Tools menu). In Windows 95 and Windows NT Workstation versions 3.51 or 4.0, these settings are stored in the Windows registry. For information about PowerPoint entries in the Windows registry, see Appendix C, "Registry Keys and Values."

  Tip   In Windows 95 and Windows NT Workstation 4.0, you can use a system policy to define most settings in the Options dialog box (Tools menu) for all PowerPoint users in your workgroup. In the System Policy Editor, set the following policy:

Users\PowerPoint 97\Tools_Options

For more information, see "Using Windows System Policies to Customize Office" in Chapter 7, "Customizing and Optimizing Microsoft Office."

Macros

PowerPoint macros are written in Visual Basic. You create macros by recording a series of actions, such as inserting a particular graphic, or by writing macros in Visual Basic code using the Visual Basic Editor (Tools menu, Macro submenu).

Macros created in a presentation are saved in the presentation file. If the presentation is saved as a template, the macros are saved with the template but are not copied to any other presentations based on that template. If the macro is created in the Visual Basic Editor and the presentation is saved as an add­in, only the Visual Basic code is saved.

Add­ins

Add­ins extend the functionality of PowerPoint — for example, by adding custom menus or commands, loading custom toolbars, or exporting presentations to a particular format. PowerPoint supports two kinds of add­ins: those compiled in Visual Basic code, and those compiled in C code. You can obtain add­ins from independent software vendors, or you can write your own.

You generate the Visual Basic code in PowerPoint by creating macros or writing code in the Visual Basic Editor (Tools menu, Macro submenu) and then saving the presentation as a PowerPoint add­in. For a C code add­in, you must write it in C and compile it as a 32­bit DLL. For information about creating add­ins for PowerPoint 97 (Windows), see the Microsoft Office 97/Visual Basic Programmer's Guide, which is published by Microsoft Press and available wherever computer books are sold. For more information about Microsoft Press books, see Appendix E, "Other Support Resources."

Using Add­ins in PowerPoint

Add­ins can be stored on a user's computer or on the network. To use an add­in, you must be running PowerPoint.

To make an add­in available

  1. On the Tools menu, click Add­Ins.

  2. In the Add­Ins dialog box, click Add New, and then browse the file structure for add­ins.

Once you have identified the add­ins you want, you must load them into PowerPoint.

To load or unload add­ins for the current PowerPoint session

  • In the Add­Ins dialog box, click the add­in you want in the Available add­ins box, and then click Load or Unload.

  Loading Add­ins Automatically (Windows only)

Add­ins remain available until you exit PowerPoint. However, PowerPoint does not store information about loading add­ins. If you want to load a particular add­in whenever a presentation is opened, you can create a macro in that presentation to load the add­in. In Windows, add­ins can also be registered so that they load automatically when PowerPoint starts.

If you want an add­in to load automatically when PowerPoint starts, change the AutoLoad value in the Windows registry key for the add­in to 1. The following example shows the registry settings for a DLL add­in:

[HKEY_LOCAL_MACHINE\Software\Microsoft\Office\8.0\PowerPoint\DLL Addins\MyDLLAddinName]
"AutoLoad"=dword:1"
"Path"= "c:\program files\microsoft office\office\Myfeat.dll"

For a Visual Basic add­in, you can include code when you write the add­in that loads it automatically. This Auto_Open routine is shown in the following example:

Sub Auto_Open()
    Dim iIndexPosn As Integer
    iIndexPosn = AddIns.Count
    With AddIns(iIndexPosn)
        .Registered = msoTrue
        .AutoLoad = msoTrue
        .Loaded = msoTrue
    End With
End Sub

If you want a Visual Basic add­in to load automatically, but you do not want to edit the Visual Basic code, change the AutoLoad value in the Windows registry key for the add­in to 1. The following example shows the registry settings for a Visual Basic add­in:

[HKEY_LOCAL_MACHINE\Software\Microsoft\Office\8.0\PowerPoint\Addins\MyVBAAddinName]
"AutoLoad"=dword:1
"Path"= "c:\program files\microsoft office\office\MyVBAfeat.ppa"

Using Windows Registry Files To Customize PowerPoint

In Windows 95 or Windows NT Workstation version 4.0, you can modify existing PowerPoint installations with a Windows registry (REG) file. When you create a custom REG file, you can distribute it to your workgroup. PowerPoint users do not need to rerun Setup to install the customized software.

To create a REG file, start the Registry Editor and modify the values in the registry settings you want. Then on the Registry menu, click Export Registry File and click the Selected branch option.

To distribute the REG file to all users in your workgroup, send it to them in electronic mail (e-mail). When users double­click the REG file, it overwrites existing settings in the branch of their Windows registry you specified with your new settings.

For more information about working with the Windows registry, see the Microsoft Windows 95 Resource Kit or the Microsoft Windows NT Server 4.0 Resource Kit and Microsoft Windows NT Workstation 4.0 Resource Kit, which are published by Microsoft Press and available wherever computer books are sold.


    Caution   Be sure that the REG file you distribute includes only the branch of the Windows registry you want to modify. The new settings in the distributed REG file overwrite all entries in that portion of the user's Windows registry.


Custom Templates

Custom templates might include a corporate color scheme, logo, and standard font, as well as standard text, such as a slogan. You can create custom templates for a workgroup and make them available on the network. You can customize the template that PowerPoint opens whenever users create a new presentation. You can also customize templates used by the AutoContent Wizard. This section explains how to customize templates for each of these scenarios.

Customizing Design Templates

To customize a design template, open an existing template, modify it, and then save it with a new name.

To create a custom design template

  1. On the File menu, click Open.

  2. In Files of type (Windows) or List files of type (Macintosh) box, click Presentation Templates.

  3. In the Name box, double­click the template you want to modify.

    PowerPoint design templates are stored in the Presentations Designs folder.

  4. In title master view, modify the master for title slides; in slide master view, modify the master for all other slides. You can also modify the masters for notes pages and audience handouts.

  5. On the File menu, click Save As.

  6. In the Save as type (Windows) or Save file as type (Macintosh) box, click Presentation Templates.

  7. In the File name box, enter a name for the new template.

  8. In the Save in box, select a folder to store the template, and then click Save.

You can store the custom design template in the Presentation Designs folder, or you can store it in some other folder. If you store the custom template on the network, store it in the folder identified on the user's computer as the Workgroup Template location. For more information about Workgroup Template settings, see "Storing Templates" in Chapter 39, "Microsoft Word Architecture."

Customizing the Default Template

You can customize the template that PowerPoint uses for new presentations by replacing Blank Presentation with a custom template. If you create a default template for a workgroup, make sure you copy the template file to each user's Templates folder.

Tip   Before you create a custom default template, open the Blank Presentation template and save it with a new name. This preserves the PowerPoint default template as a backup.

To customize the default template

  1. If you want to make a content template your default template, open and modify a presentation or content template.

    – or –

    If you want to make a design template your default template, open and modify an existing design template.

  2. On the File menu, click Save As.

  3. In the Save as type (Windows) or Save file as type (Macintosh) box, click Presentation Template.

  4. In the File name (Windows) or Save as (Macintosh) box, type Blank Presentation.

  5. In the Save in box, select the Templates folder, and then click Save.

Customizing Templates Used by the AutoContent Wizard

When you start PowerPoint, the quickest way to create a new presentation is to use the AutoContent Wizard. This wizard provides an assortment of content templates, and it steps you through the process of creating a presentation. Content templates in the AutoContent Wizard are listed by category in the Presentation type panel. These templates create either standard presentations or online documents that can be read by a Web browser, depending on the output option you select.

You can customize any of the templates included in the AutoContent Wizard.

To customize a content template for the AutoContent Wizard

  1. On the File menu, click Open.

  2. In Files of type (Windows) or List files of type (Macintosh) box, click Presentation Templates.

  3. In the Name box, double­click the template you want to modify.

  4. In slide view, modify the text, graphics, and any other objects on the slide.

  5. To change the appearance of the content template, modify the masters in title master view or slide master view.

  6. On the File menu, click Save, and then save the template with the same name.

Naming Convention for AutoContent Wizard Templates

Each type of presentation in the AutoContent Wizard has two templates associated with it: one for standard presentations and one for online documents. If you select the Presentations, informal meetings, handouts option on the Output option panel in the AutoContent Wizard, then the wizard bases your presentation on the standard presentation template. If you select the Internet, kiosk option, the AutoContent Wizard bases your presentation on the online document template.

In the Presentations folder, find the template you want to customize according to the following naming convention:

For this kind of templateOpen the template with a long file name containing this Or a short file name containing this
Standard presentation (Standard)
For example, Recommending
a Strategy (Standard)
_s
For example, Stratg_s
Online document(Online)
For example, Recommending a Strategy (Online)
_o
For example, Stratg_o

Note   If the templates are stored on a Novell server, they are stored with a short file name, since the NetWare operating system does not support long file names.

Color Schemes for AutoContent Wizard Templates

While you are customizing the template, you can also customize the color schemes used by the AutoContent Wizard. The color scheme is based on the option you select in the Presentation style panel of the AutoContent Wizard.

To customize a color scheme used by the AutoContent Wizard, open the content template you want to customize, modify the color scheme, and then save the template with the same name. The following table lists the color schemes associated with each option in the Presentation style panel.

To customize this type of output Modify this color scheme
On­screen presentation Color scheme with darkest background color
Black and white overheads Black and white color scheme
Color overheadsColor scheme with the lightest background color
35mm slidesColor scheme with darkest background color

Presentation Options

While you are customizing the template, you can also customize optional items that the AutoContent Wizard includes in the presentation. The available items are based on what you select in the Presentation options panel in the AutoContent Wizard.

To customize the items you select with presentation options in the AutoContent Wizard, open the content template you want to customize, modify the master or slide, and then save the template with the same name. The following table associates each presentation option with the item and the type of template to modify.

To customize the item associated with this presentation option Modify this item On this type of template
Copyright notice on each page Footer area on slide and title masters Online
Date last updated on each page Date area on slide and title masters Online
E­mail hyperlink on each page Number area on slide and title masters Online
Presentation title Title area on title master Standard
Your nameSubtitle area on title master Standard
Additional information Subtitle area on title master Standard

Custom Toolbar Settings

Customize toolbar settings in the Customize dialog box (Tools menu). For more information about customizing toolbars, see PowerPoint online Help. In PowerPoint 97 (Windows), custom toolbar settings are stored in the Windows registry or to various settings files, which PowerPoint 97 reads when it starts. The settings you make to PowerPoint 98 (Macintosh) are stored in System Folder: Preferences.

  Tip   In Windows 95 and Windows NT Workstation 4.0, you can use a system policy to define the default value for the location of the custom toolbar settings file for all PowerPoint users in your workgroup. In the System Policy Editor, set the following policy:

User\PowerPoint 97\Miscellaneous\Personal Toolbars

For more information, see "Using Windows System Policies to Customize Office" in Chapter 7, "Customizing and Optimizing Microsoft Office."

Custom Export Formats

You can save either the current slide or the current presentation in any format for which an export graphics filter or export module is installed. Export graphics filters are supplied by independent software vendors, whereas export modules are PowerPoint add­ins you write in Visual Basic. For information about Visual Basic add­ins, see "Add-ins" earlier in this chapter.

You can save slides and presentations in many non­native formats by using the graphics filters that come with PowerPoint. By installing export graphics filters or export modules, however, you can also save slides and presentations in a custom format.

Using Export Graphics Filters

When you install a graphics filter for exporting PowerPoint data to a particular graphics format, the filter is added to the registry (Windows) or to a settings file (Macintosh). When PowerPoint starts, it reads the list of installed filters and includes them in the Save as type (Windows) or Save file as type (Macintosh) box in the Save As dialog box (File menu).

Using Export Modules

An export module is a Visual Basic add­in that registers as an export module in the registry (Windows) or in a settings file (Macintosh). When PowerPoint starts, it reads the list of installed export modules and includes them in the Save as type (Windows) or Save file as type (Macintosh) box in the Save As dialog box (File menu). Formats defined by export modules appear after PowerPoint native formats and before graphics filter formats in the list.

AutoClipArt

When you click AutoClipArt (Tools menu) in slide view, PowerPoint launches AutoClipArt, a tool that searches the active presentation for words in its list of keywords. From AutoClipArt, you can run Clip Gallery to match keywords found by AutoClipArt with keywords in Clip Gallery, and insert the corresponding clips into the active presentation.

The keyword list in AutoClipArt cannot be modified. However, you can modify the keywords in Clip Gallery, so that the AutoClipArt keywords map to different clips. When you add new clip art, pictures, sounds, or videos to Clip Gallery, you can also add keywords from the AutoClipArt list so that the new clip can be incorporated into presentations through AutoClipArt.

When you modify the Clip Gallery keywords, you create a custom Clip Gallery database, which you can distribute to users or store on the network. When users run AutoClipArt, they can automatically use the custom Clip Gallery, which customizes the way they use AutoClipArt.

For more information about Clip Gallery databases and how to distribute custom databases on a network, see PowerPoint online Help.

  Tools and Utilities   The Office Resource Kit Tools and Utilities include the list of keywords in AutoClipArt. For information about viewing the AutoClipArt keyword list, see "PowerPoint AutoClipArt Concept List" in Appendix A, "Microsoft Office Resource Kit Tools and Utilities."

Custom AutoContent Wizard Interface

In addition to customizing the templates opened by the AutoContent Wizard, you can also customize the user interface of the AutoContent Wizard so that it opens content templates other than those installed during Setup. For information about customizing templates used by the AutoContent Wizard, see "Customizing Templates Used by the AutoContent Wizard" earlier in this chapter. The following sections explain how to customize the user interface of the AutoContent Wizard.

The user interface of AutoContent Wizard can be customized in two ways:

  • The network administrator can customize the user interface for an entire workgroup.

  • End­users can add frequently used templates to the list in the Presentation style panel.

  Administrator Customization of the AutoContent Wizard User Interface (Windows only)

To automate the process of creating presentations using your own content templates, you can customize the user interface of the AutoContent Wizard. In this scenario, clicking Presentation type in the AutoContent Wizard displays your labels on the buttons and lists the content templates you specify.

To customize the AutoContent Wizard in this way, modify the self­registration (SRG) files for the AutoContent Wizard; then run Setup and click Reinstall to repeat the PowerPoint installation in maintenance mode. Setup reads the settings in the modified SRG files, and then writes those settings to the Windows registry.

Note   Unlike system policy files, SRG files can modify Windows registry settings under Windows NT Workstation 3.51, as well as Windows NT Workstation 4.0 and Windows 95. However, SRG files do not modify settings on the Macintosh.

Tip   If users have already installed PowerPoint, you can customize the AutoContent Wizard interface by distributing a REG file. For more information about creating and distributing REG files, see "Add-ins" earlier in this chapter.

In the SRG file, you configure the labels of the buttons in the Presentation type panel in a heading subkey. The buttons allow you to organize your templates by category. The first button is always labeled All, and it displays all topics in the Presentation type panel. For all the other buttons you define in a heading subkey, you can define topic names and their corresponding content templates in a topic subkey.

For example, in the following SRG file, the AutoContent Wizard displays My Category as the second button. If you click My Category, the topics My First Presentation and My Second Presentation are displayed.

Note   The templates associated with these topics are named according to the convention described in "Naming Convention for AutoContent Wizard Templates" earlier in this chapter. That is, the name of the template for creating the standard presentation is My First Presentation (standard), and the name of the template for creating the corresponding online presentation is My First Presentation (online).

The following code sample shows an example of an SRG file that customizes the AutoContent Wizard, as described in the preceding paragraphs.

#----------------------------------------------------------------------------------
# Heading 2
#----------------------------------------------------------------------------------
[HKEY_LOCAL_MACHINE\Software\Microsoft\Office\8.0\PowerPoint\AutoContent Wizard\Heading2]
"Enabled"="dword:1"
"Caption"="reg_sz:&My Category"

[HKEY_LOCAL_MACHINE\Software\Microsoft\Office\8.0\PowerPoint\AutoContent Wizard\Heading2\Topic1]
"Caption"="reg_sz:My First Presentation"
"OnlineFile"="reg_sz:<product path>\\presentations\\My First Presentation (online).pot"
"StandardFile"="reg_sz:<product path>\\presentations\\My First Presentation (standard).pot"

[HKEY_LOCAL_MACHINE\Software\Microsoft\Office\8.0\PowerPoint\AutoContent Wizard\Heading2\Topic2]
"Caption"="reg_sz:My Second Presentation"
"OnlineFile"="reg_sz:<product path>\\presentations\\My Second Presentation (online).pot"
"StandardFile"="reg_sz:<product path>\\presentations\\My Second Presentation (standard).pot"

The following illustration shows the customized user interface created by this SRG file.

When modifying the SRG files that come with PowerPoint, follow the convention that PowerPoint uses regarding which SRG file is responsible for certain AutoContent Wizard elements. This convention is shown in the following table.

To modify this in the AutoContent Wizard Modify this In this SRG file
Button namesCaption data in each Heading subkey Acminlng or Acminsht
First topic in each category Data in Topic1 subkey in each Heading subkey Acminlng or Acminsht
Second topic in each category Data in Topic2 subkey in each Heading subkey Actyplng or Actypsht
Third and subsequent topics in each category Data in Topic3 and subsequent subkeys in each Heading subkey. Create new Topic subkeys as needed. Acalllng or Acallsht

End­User Customization of the AutoContent Wizard User Interface

End users can customize the AutoContent Wizard so that they have quick access to a list of selected templates.

To customize the AutoContent Wizard with a list of favorites

  1. In the AutoContent Wizard, click Presentation type.

  2. Click the button for the category of the presentations you want to add, and then click Add.

    All and Carnegie Coach are not customizable; if you click these buttons, the Add button is not available.

  3. In the Select Presentation Template dialog box, browse through a folder and select the presentations or templates you want to add, and then click Open.

    The AutoContent Wizard adds the files to the list of favorites.

  4. Click Add and repeat Step 3 to add presentations and templates in other folders.

Adding a file to the list of favorites adds a subkey for that file to the Windows registry under the key HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Office\8.0\PowerPoint\AutoContent Wizard\Headingx, where x is a number that stands for the customized category. For example, adding a file to the list of favorites for the General button adds a subkey under \Heading2. Removing a file from the list removes its subkey from the registry, but does not delete the file.

Top

How PowerPoint Resolves Conflicts

A slide in a presentation has information coming from several sources: templates, masters, and formatting that you have applied to a particular slide. This information follows a hierarchy; at the top are the settings applied to the individual slide. These settings override settings in the master or template. However, you can return a slide to its master settings by reapplying the slide's AutoLayout.

When a new design template is attached to an existing presentation, the master elements in the new design template replace the master elements in the presentation. Changing design templates does not affect the content of a presentation, except for objects that appear as background objects on a master. Design templates do not affect the layout of handout and notes masters.

If you load more than one add­in during a PowerPoint session, all of the loaded add­in elements are available. That is, if one add­in adds a command to the File menu and another add­in adds different command to the File menu, both commands appear in the File menu when both add­ins are loaded.

Note   If multiple add­ins affect the same item, the add­in loaded last is used.


Why don't the slides in my presentation match the new template?

You open an existing presentation and apply a new corporate template that includes the company logo and titles in Times New Roman font. Most of the slides in your presentation change their appearance to match the new template, but the logo is missing on one slide, and on another slide the title appears in Arial font instead.

Inconsistencies like these can occur when you have applied custom settings to slides. On the slide that doesn't display the logo, for example, a custom background that hides background objects has been applied. On the slide that formats the title incorrectly, the formatting for title text has been changed to Arial. These modifications to individual slides override the settings in the new design template.

To fix the slide that doesn't display the logo, display the slide in slide view and clear the Omit background graphics from master check box in the Custom Background dialog box (Format menu). To fix the slide that formats the title incorrectly, display the slide in slide view, and then click the Reapply button in the Slide Layout dialog box (Format menu).


Top
Contents | << Previous | Next >> | Index
